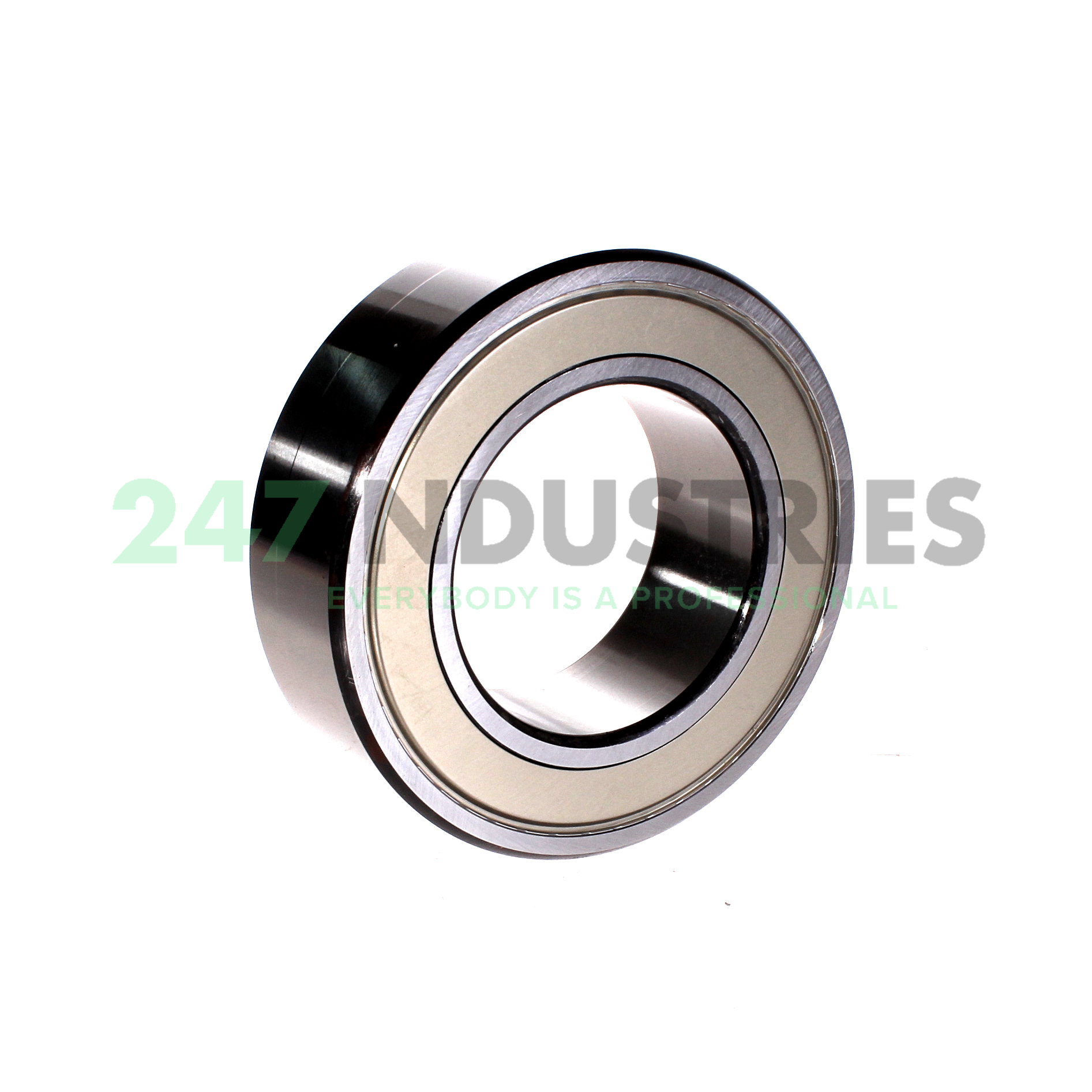

3216-2Z INA

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 140
3. Width (B) MM 44,4
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.748

Suffix description

1. 2Z Gap Seals At Both Sides Of The Bearing

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number 3216-2Z INA
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 2.35

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-03
2. ECLASS2 number 23-05-08-03
