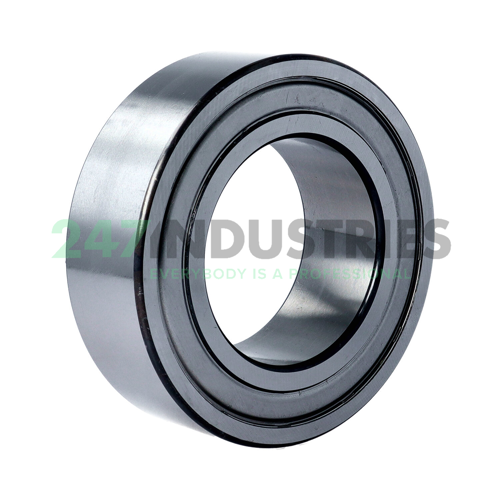

3215-B-2Z-TVH FAG

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 130
3. Width (B) MM 41,3
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.625
7. Width (b) mm 41,3

Technical details

1. Availability 4 pcs
2. Brand FAG
3. Item number 3215-B-2Z-TVH FAG
4. Also known as 0392523020000

5. EAN 4064327116178
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.907

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 85000
2. Limiting speed (n G) 3900
3. Reference speed (n ϑr) 5300
