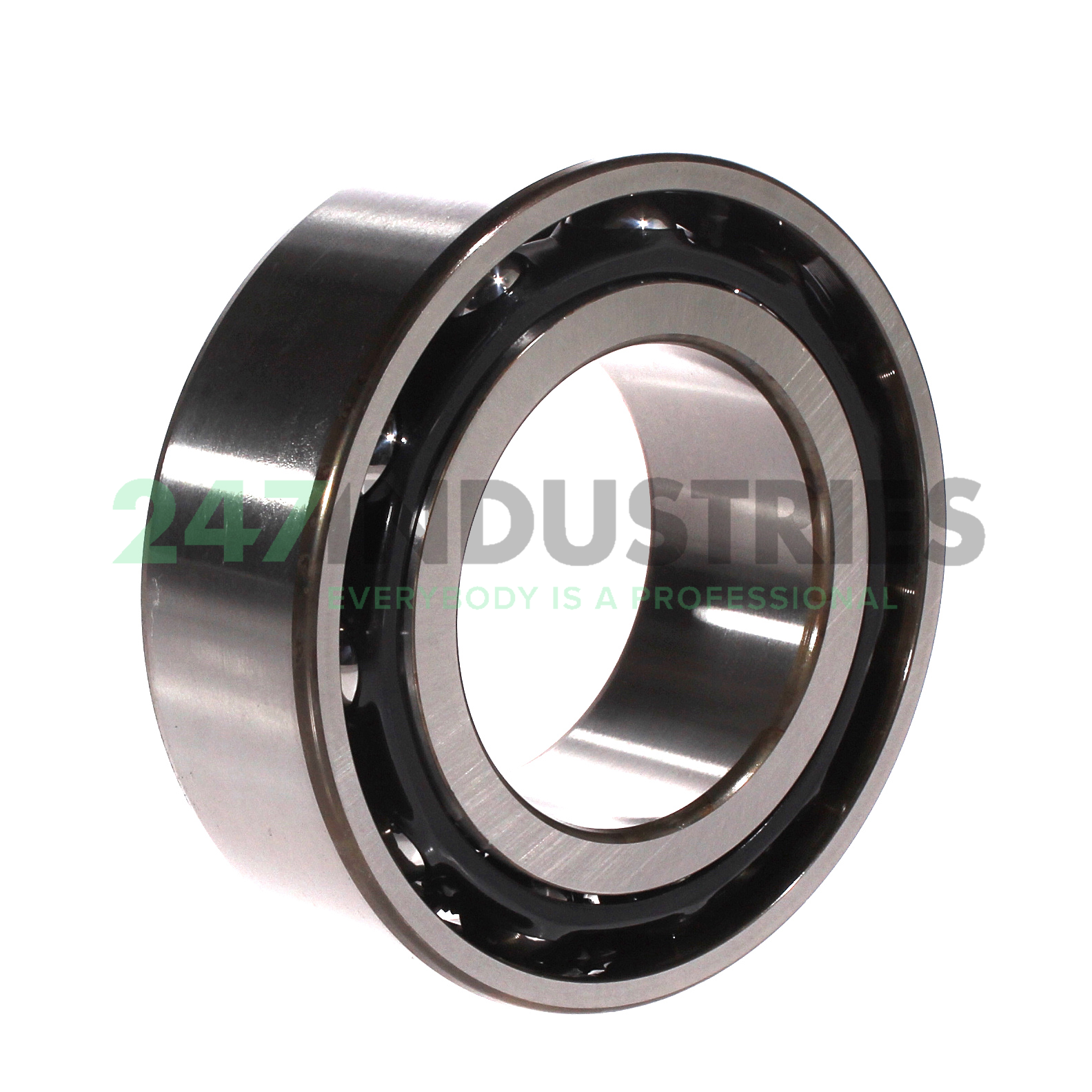

3214A/C3 SKF

Double row angular contact ball bearing

Stock
5 pcs in stock and ready for shipment
Brand SKF
Article number 3214A/C3 SKF
Inside diameter 70mm
Outside diameter 125mm
Width 39,7mm
Product description

The 3214A/C3 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Similar to: 3214A/C3 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 70
  2. Outer (D) MM 125
  3. Width (B) MM 39,7
  4. Inner (d) Inch 2.7559
  5. Outer (D) Inch 4.9213
  6. Width (B) Inch 1.563

Suffix description

  1. A Double Row Angular Contact Ball Bearing Without Filling Slots
  2. C3 Internal Clearance Larger Than Normal

Technical details

  1. Availability 5 pcs
  2. Brand SKF
  3. Item number 3214A/C3 SKF
  4. EAN 7316570292749
  5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 1.833

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
