3214-B-2RSR-TVH FAG

€ 141,48 ex VAT
€ 171,19 in VAT
€ 171,19 in VAT
€ 141,48 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

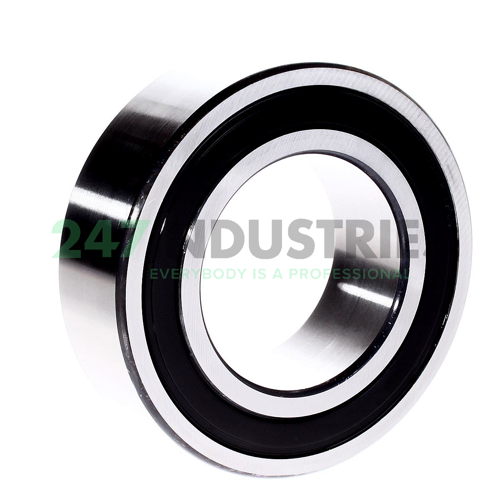

3214-B-2RSR-TVH FAG

Angular Contact Ball Bearing Double Row

Stock
28 pcs in stock and ready for shipment
Brand FAG
Article number 3214-B-2RSR-TVH FAG
Inside diameter 70mm
Outside diameter 125mm
Width 39,7mm
Product description

The 3214-B-2RSR-TVH FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Downloads and links

Similar to: 3214-B-2RSR-TVH FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 70
  2. Outer (D) MM 125
  3. Width (B) MM 39,7
  4. Inner (d) Inch 2.7559
  5. Outer (D) Inch 4.9213
  6. Width (B) Inch 1.563
  7. Width (b) mm 39,7

Suffix description

  1. B Internal Design Modification
  2. 2RSR Seal At Each Side Of The Bearing
  3. TVH Moulded Polyamide Cage Snap-Type, Rolling Element Riding

Technical details

  1. Availability 28 pcs
  2. Brand FAG
  3. Item number 3214-B-2RSR-TVH FAG
  4. Also known as 0384742390000
  5. EAN 4026677252500
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 1.78

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal 2RS - Rubber Seal on Two Sides
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 79000
  2. Radial Dynamic Load Rating Cr (N) 82000
  3. Limiting speed (n G) 3100
  4. ECLASS number 23-05-08-03
  5. ECLASS2 number 23-05-08-03
  6. Medias description Angular contact ball bearing 32..-B-2RSR-TVH, double row, 1 inner ring

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less
