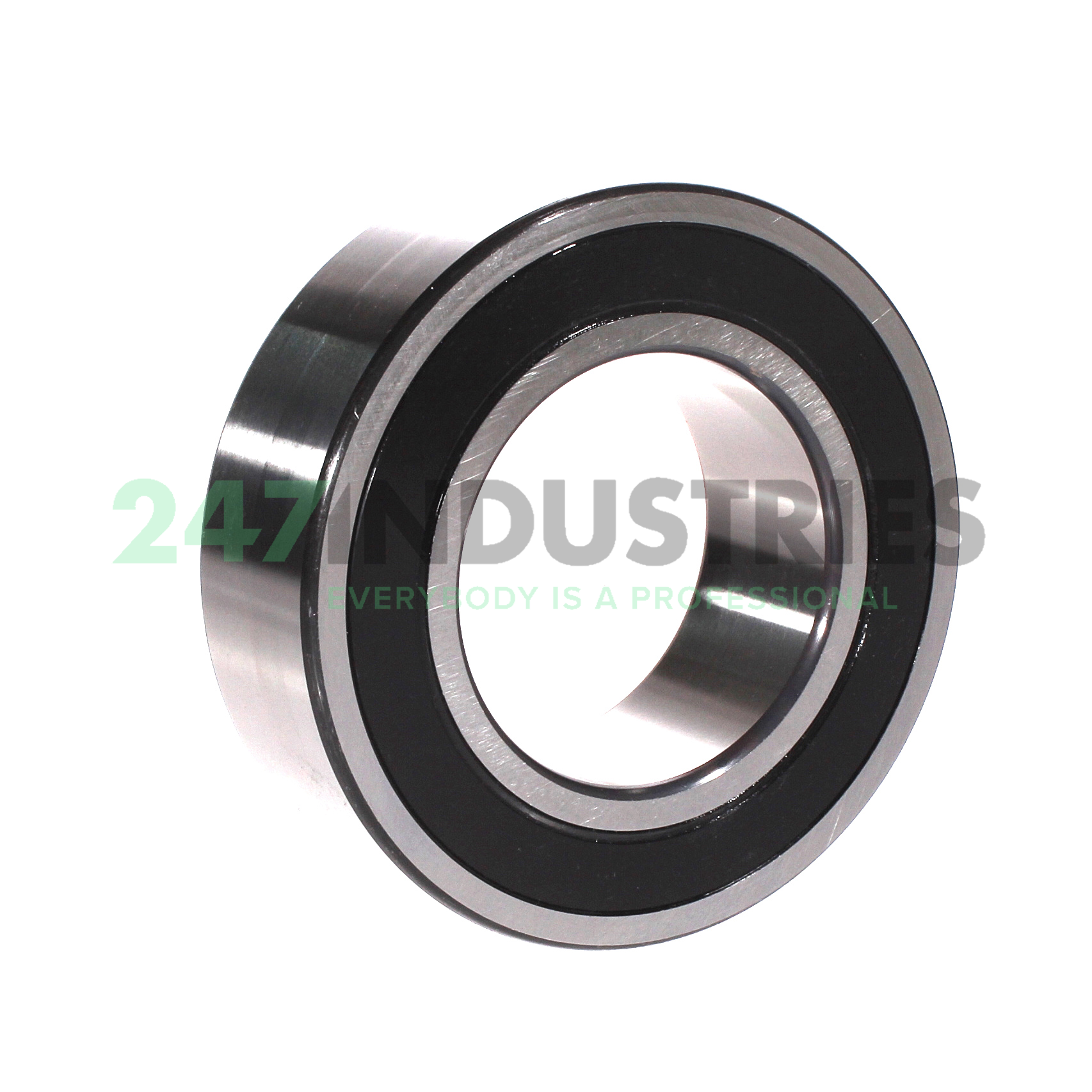

3214-2RS-C3 INA

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 125
3. Width (B) MM 39,7
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 1.563

Suffix description

1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number 3214-2RS-C3 INA
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.78

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-03
2. ECLASS2 number 23-05-08-03

Downloads and links

1. Link to manufacturer Link to manufacturer
