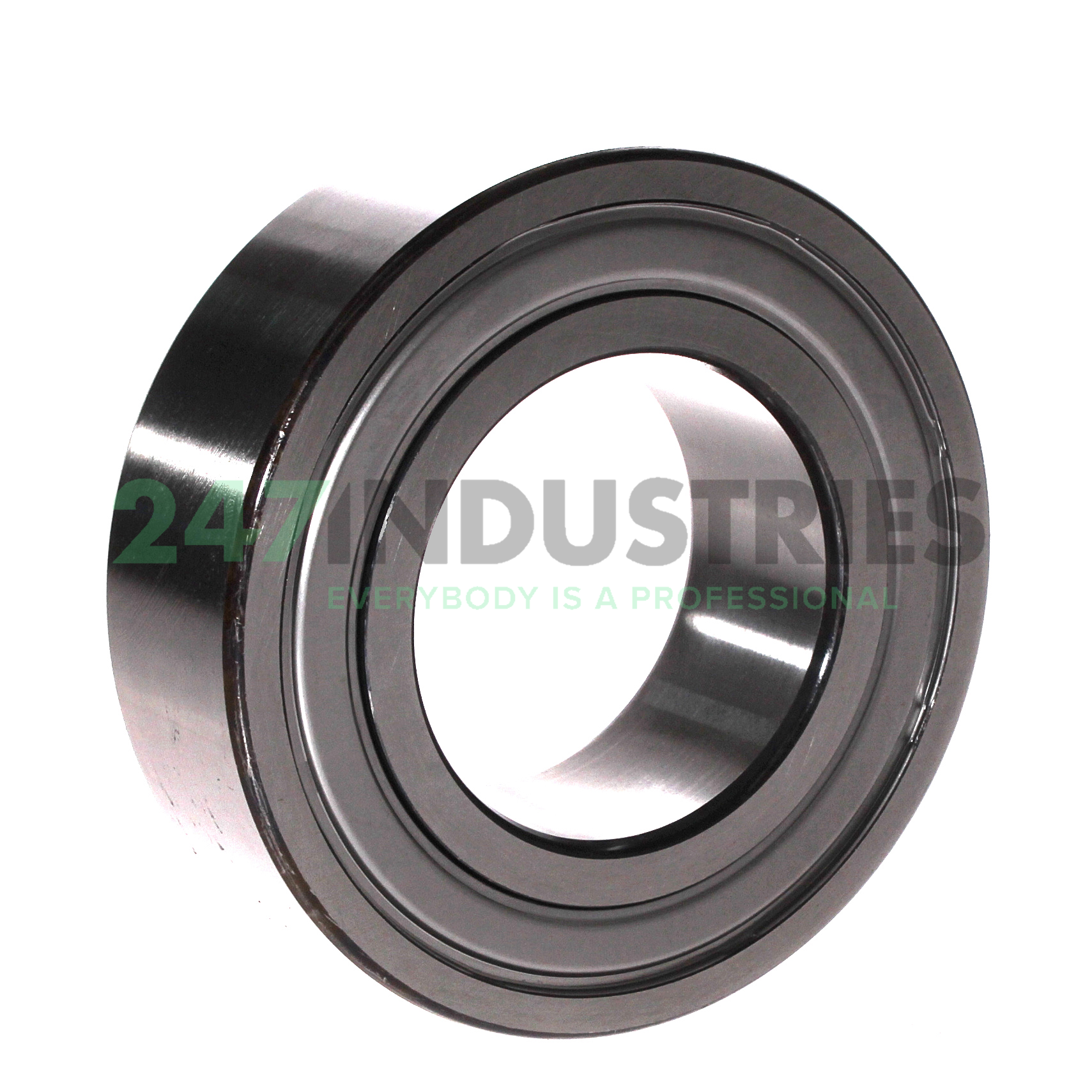

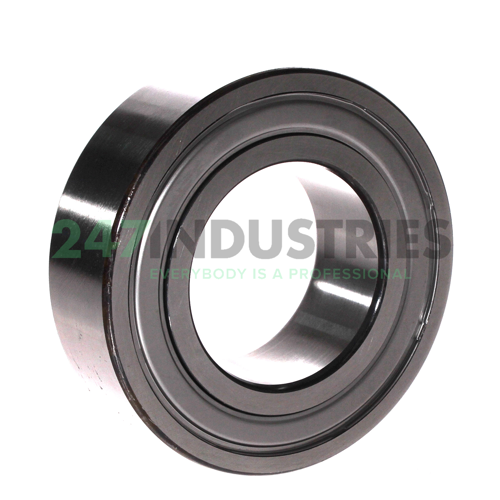

3213B-2ZRTNGC3 NSK

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 120
3. Width (B) MM 38,1
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 4.7244
6. Width (B) Inch 1.5

Suffix description

1. B 25º Contact Angle
2. 2ZR Metal Shields At Each Side Of The Bearing
3. TNG Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
4. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 3 pcs
2. Brand NSK
3. Item number 3213B-2ZRTNGC3 NSK
4. EAN 00029176638817
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.75

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
