3212ATN9 SKF

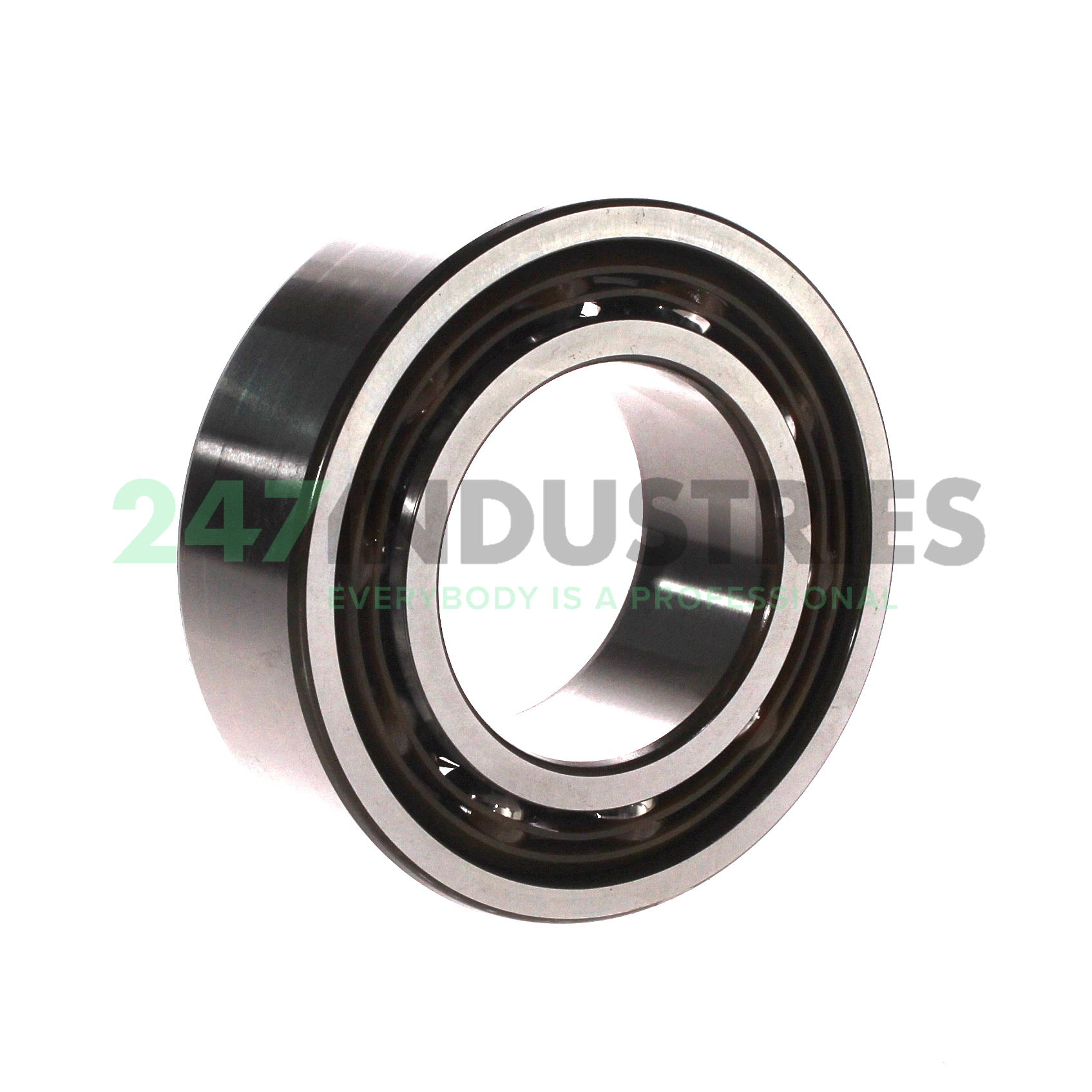

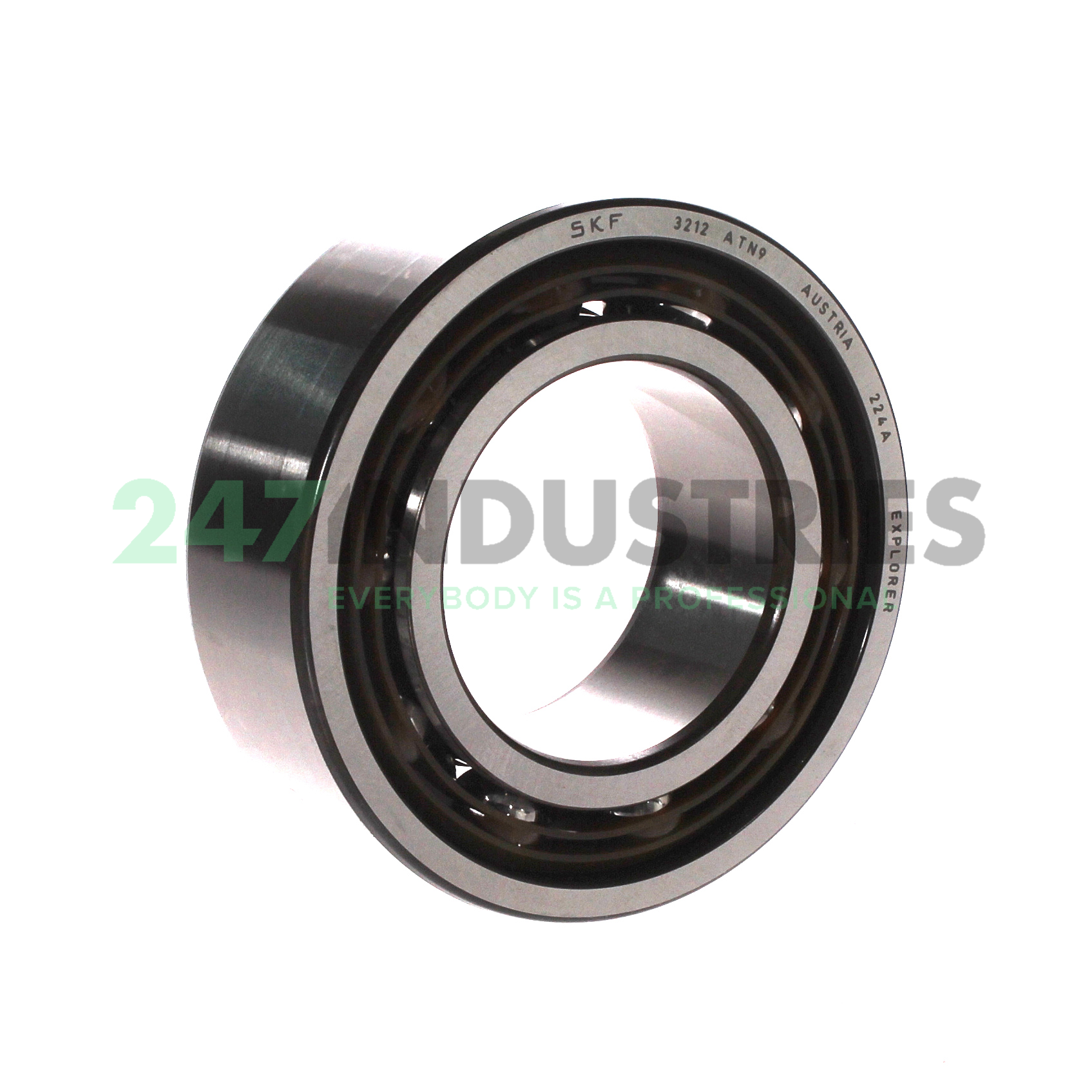

Double row angular contact ball bearing

Stock
4 pcs in stock and ready for shipment
Brand SKF
Article number 3212ATN9 SKF
Inside diameter 60mm
Outside diameter 110mm
Width 36,5mm
Product description

The 3212ATN9 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Help with this product

Similar to: 3212ATN9 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 60
  2. Outer (D) MM 110
  3. Width (B) MM 36,5
  4. Inner (d) Inch 2.3622
  5. Outer (D) Inch 4.3307
  6. Width (B) Inch 1.437

Suffix description

  1. A Double Row Angular Contact Ball Bearing Without Filling Slots
  2. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered

Technical details

  1. Availability 4 pcs
  2. Brand SKF
  3. Item number 3212ATN9 SKF
  4. EAN 7316570216578
  5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 1.355

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
