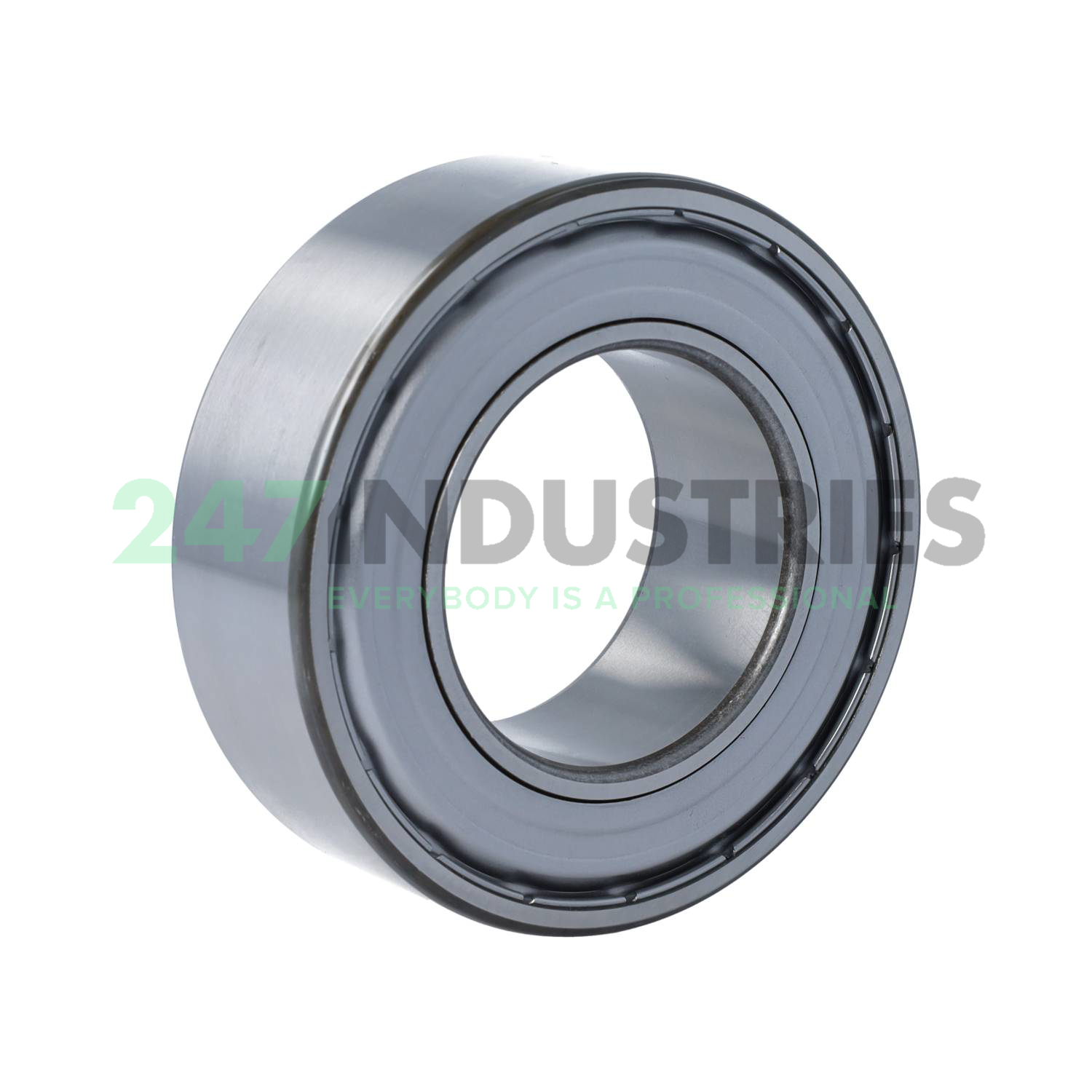

3212A-2Z SKF

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 110
3. Width (B) MM 36,5
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 4.3307
6. Width (B) Inch 1.437

Suffix description

1. A Double Row Angular Contact Ball Bearing Without Filling Slots
2. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 3212A-2Z SKF
4. Also known as 3212-BD-2Z
   3212-BD-XL-2Z
   3212ZZ

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.18

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
