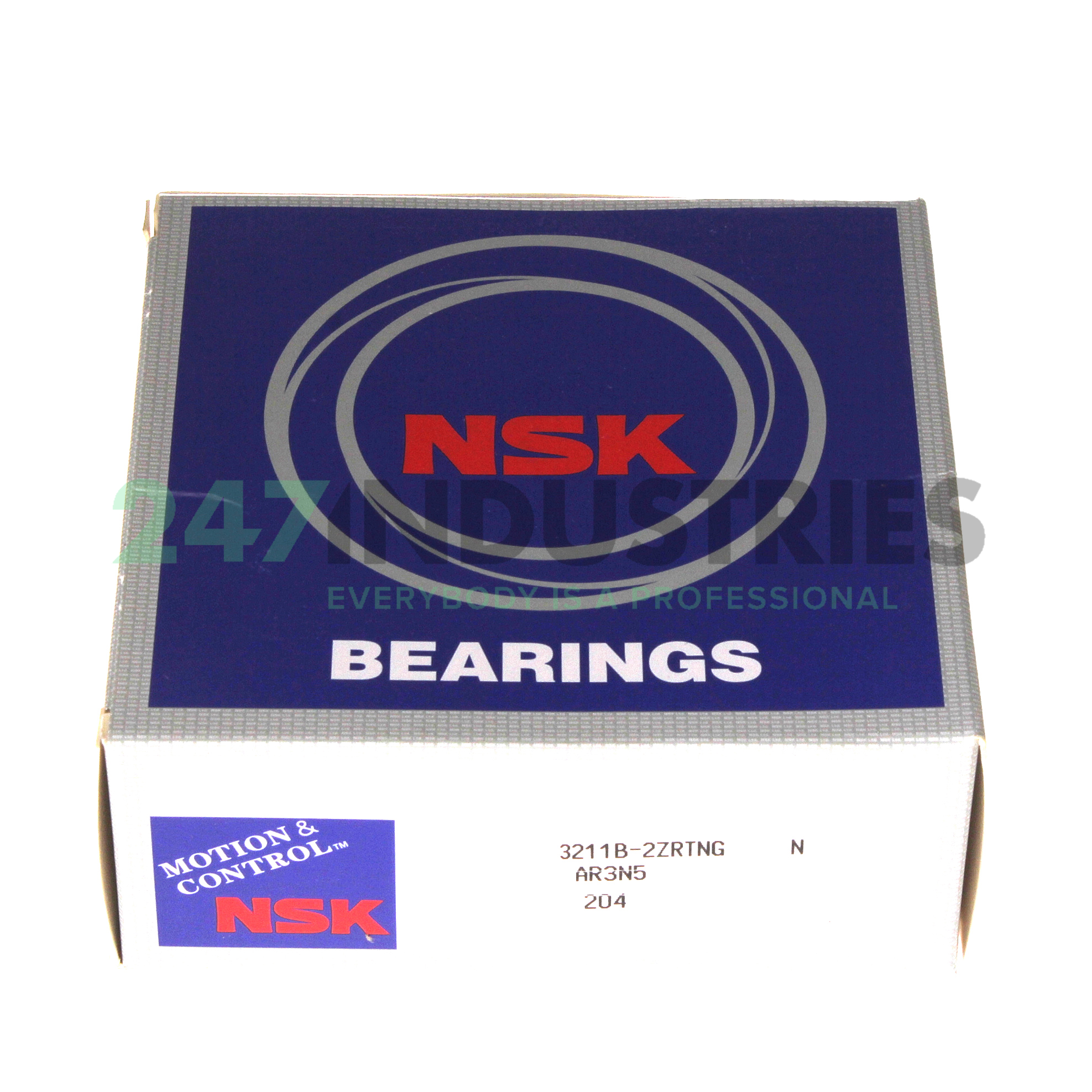

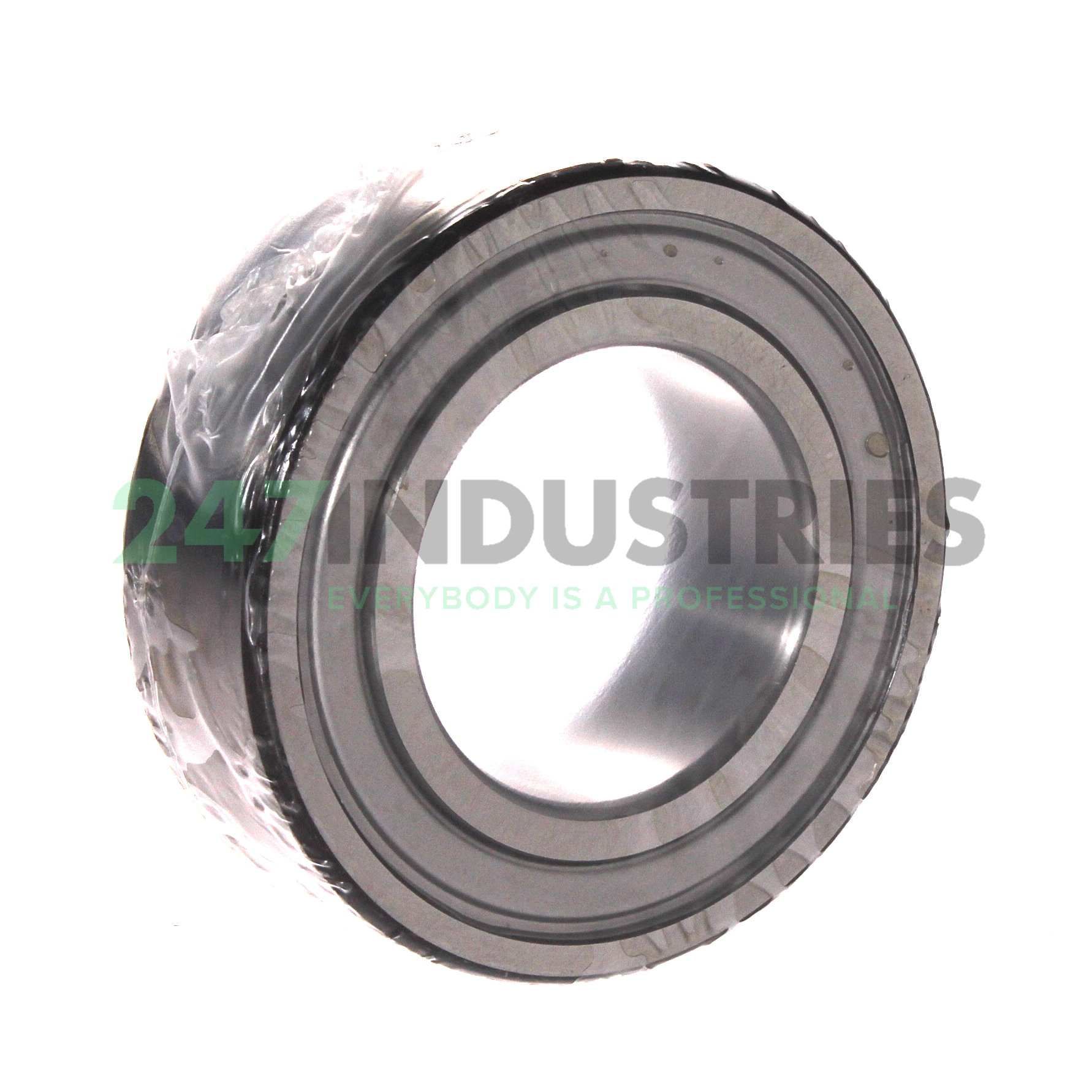

3211B-2ZRTNG NSK

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 100
3. Width (B) MM 33,3
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.311

Suffix description

1. B 25º Contact Angle
2. 2ZR Metal Shields At Each Side Of The Bearing
3. TNG Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding

Technical details

1. Availability 8 pcs
2. Brand NSK
3. Item number 3211B-2ZRTNG NSK
4. EAN 00029176422058
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.029

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
