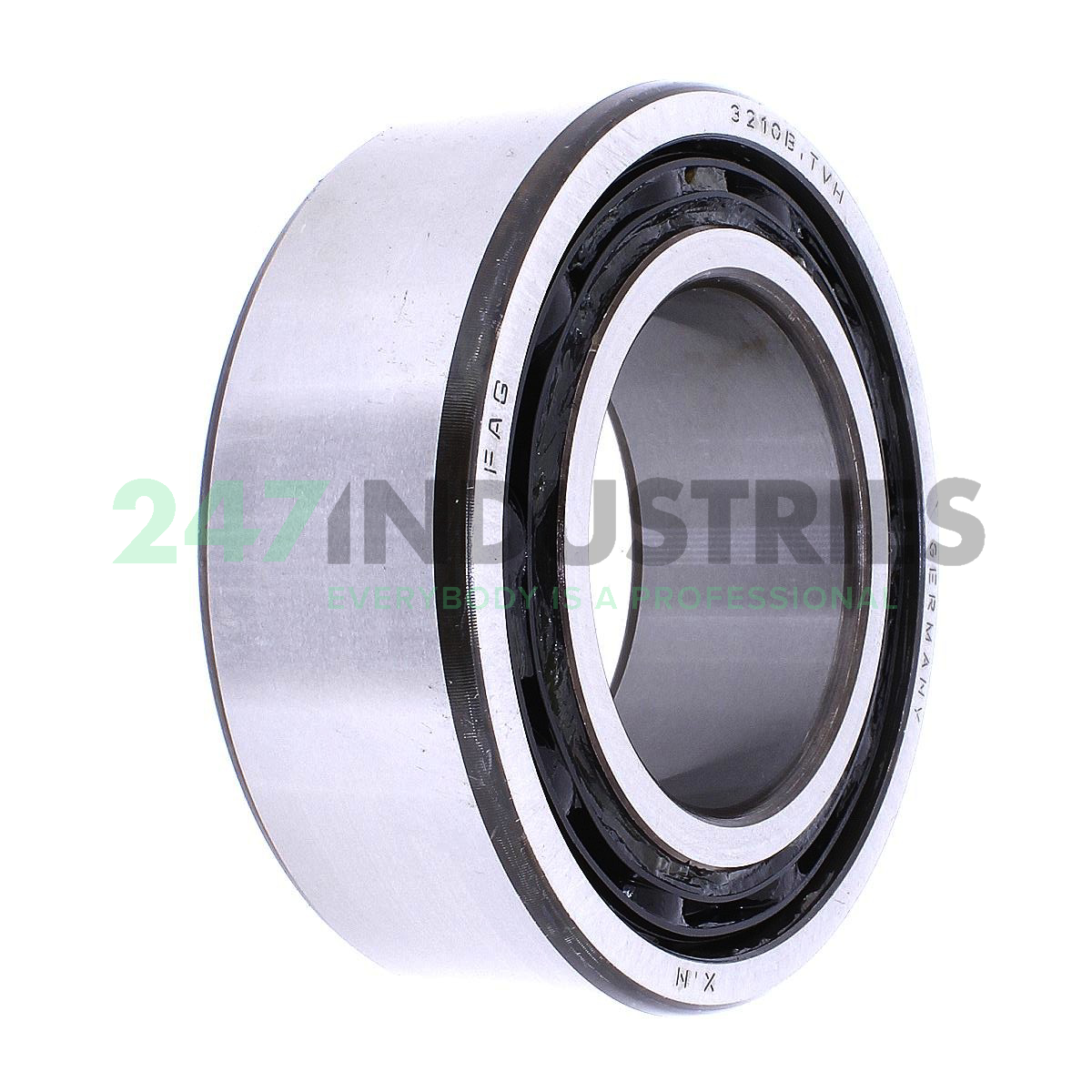

3210B.TVH FAG

Double row angular contact ball bearing

Stock
6 pcs in stock and ready for shipment
Brand FAG
Article number 3210B.TVH FAG
Inside diameter 50mm
Outside diameter 90mm
Width 30,2mm
Product description

The 3210B.TVH FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Help with this product

Downloads and links

Similar to: 3210B.TVH FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 50
  2. Outer (D) MM 90
  3. Width (B) MM 30,2
  4. Inner (d) Inch 1.9685
  5. Outer (D) Inch 3.5433
  6. Width (B) Inch 1.189

Suffix description

  1. B Internal Design Modification
  2. TVH Moulded Polyamide Cage Snap Type, Rolling Element Riding

Technical details

  1. Availability 6 pcs
  2. Brand FAG
  3. Item number 3210B.TVH FAG
  4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 0.735

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal No Seal
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
