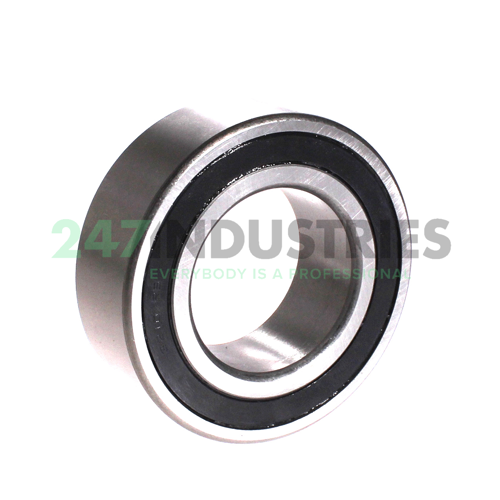

3210A-2RSTN FIS

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 30,2
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.189

Suffix description

1. A Double Row Angular Contact Ball Bearing Without Filling Slots
2. 2RS Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
3. TN Injection Moulded Snap-Type Cage Of Polyamide, Ball Centered

Technical details

1. Availability 0 pcs
2. Brand FIS
3. Item number 3210A-2RSTN FIS
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.673

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
