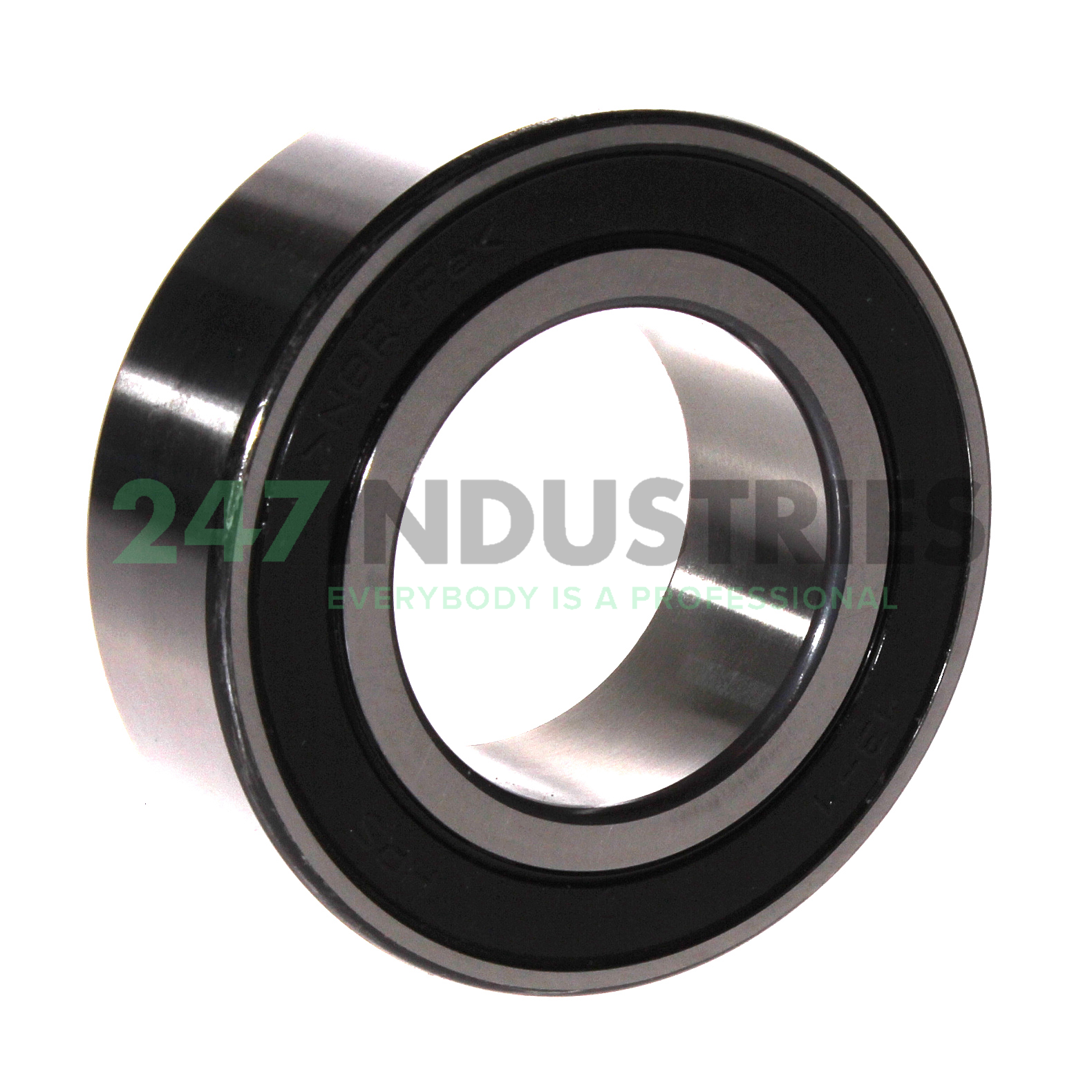

3210-BD-2HRS-TVH FAG

All dimensions

1. Inner (d) MM 50,00
2. Outer (D) MM 90,00
3. Width (B) MM 30,20
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.1890

Suffix description

1. BD Modified Internal Construction, Contact Angle α=30°, Without Filling Slot
2. 2HRS Lip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
3. TVH Moulded Polyamide Cage Snap-Type, Rolling Element Riding

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number 3210-BD-2HRS-TVH FAG
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.673

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RH - High Speed Low Friction Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
