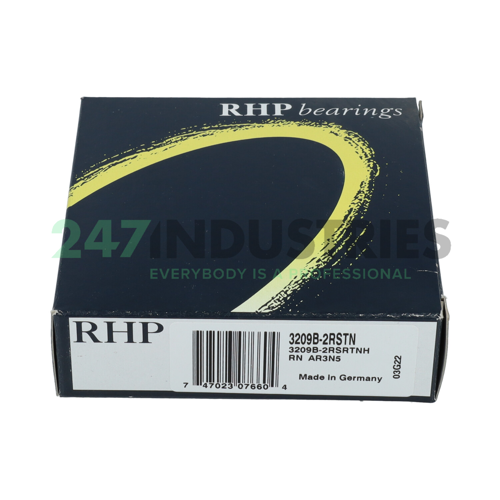

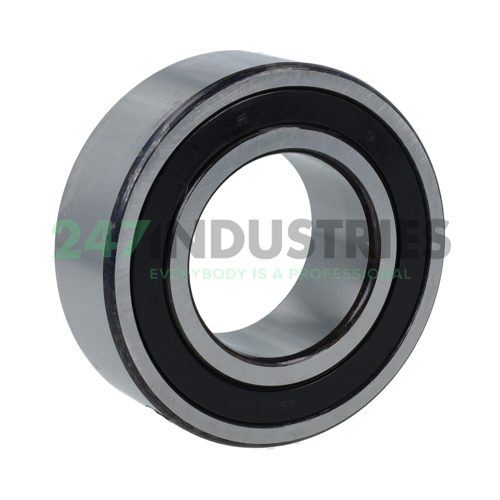

3209B-2RSRTNH RHP

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 30,2
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 1.189

Suffix description

1. B No Filling Slots. Contact Angles Diverge – 25º
2. 2RSR Rubber Seals At Each Side Of The Bearing
3. TNH Plastic Retainer, Snap Type

Technical details

1. Availability 4 pcs
2. Brand RHP
3. Item number 3209B-2RSRTNH RHP
4. Also known as 3209ATN1/2RS
   3209B-2RSRTNG

5. EAN 00747023076604
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.64

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
