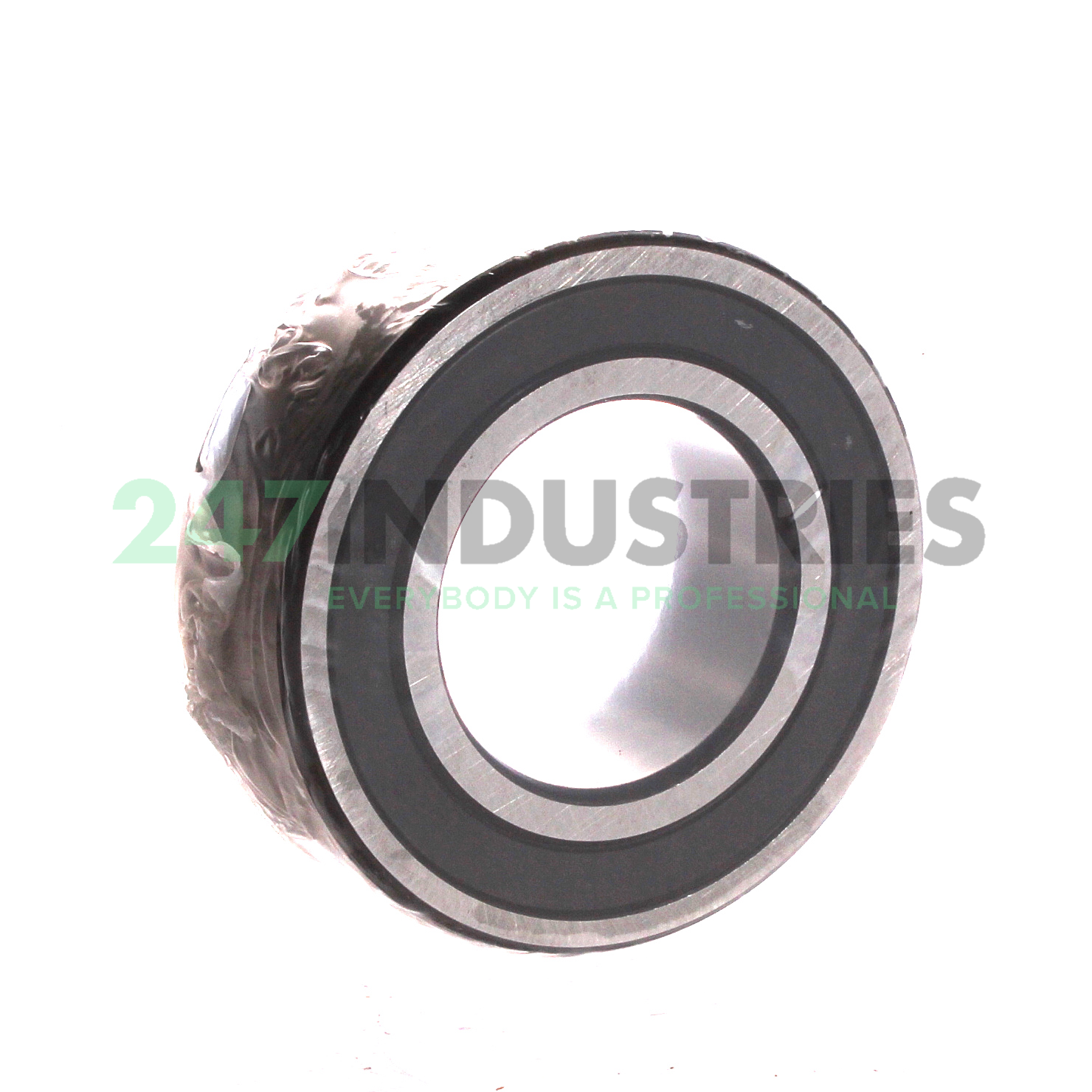

3209B-2RSRTNG NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 30,2
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 1.189

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. TNG Cage Made Of Glass-Fibre Reinforced Polyamide 66

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 3209B-2RSRTNG NSK
4. EAN 00029176421914
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.64

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
