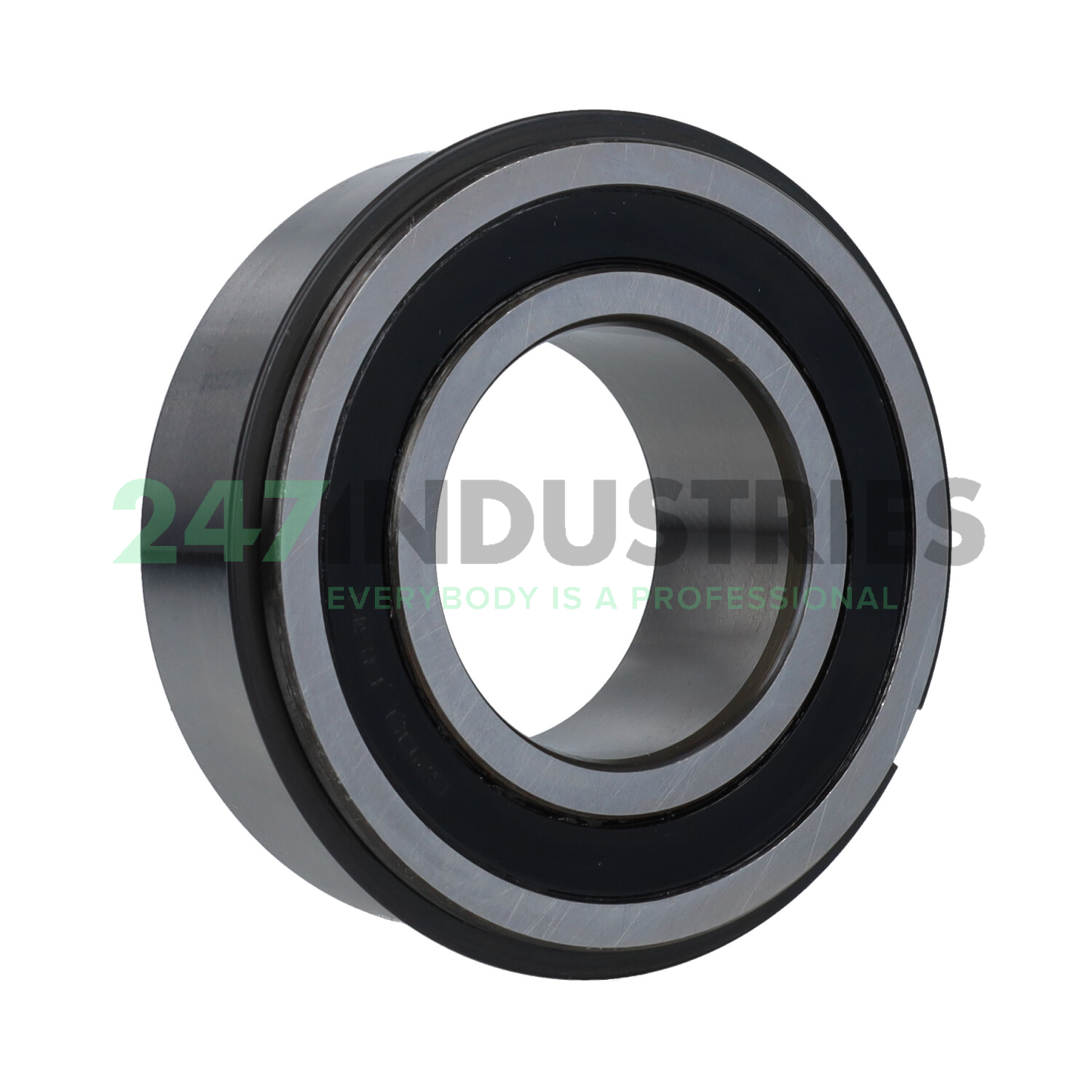

3209B-2RSRNRTNHC3 RHP

All dimensions

1. Width (B) MM 30,2
2. Width (B) Inch 1.189

Suffix description

1. B No Filling Slots. Contact Angles Diverge – 25º
2. 2RSR Rubber Seals At Each Side Of The Bearing
3. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring
4. TNH Plastic Retainer, Snap Type
5. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 1 pc
2. Brand RHP
3. Item number 3209B-2RSRNRTNHC3 RHP
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.59

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
