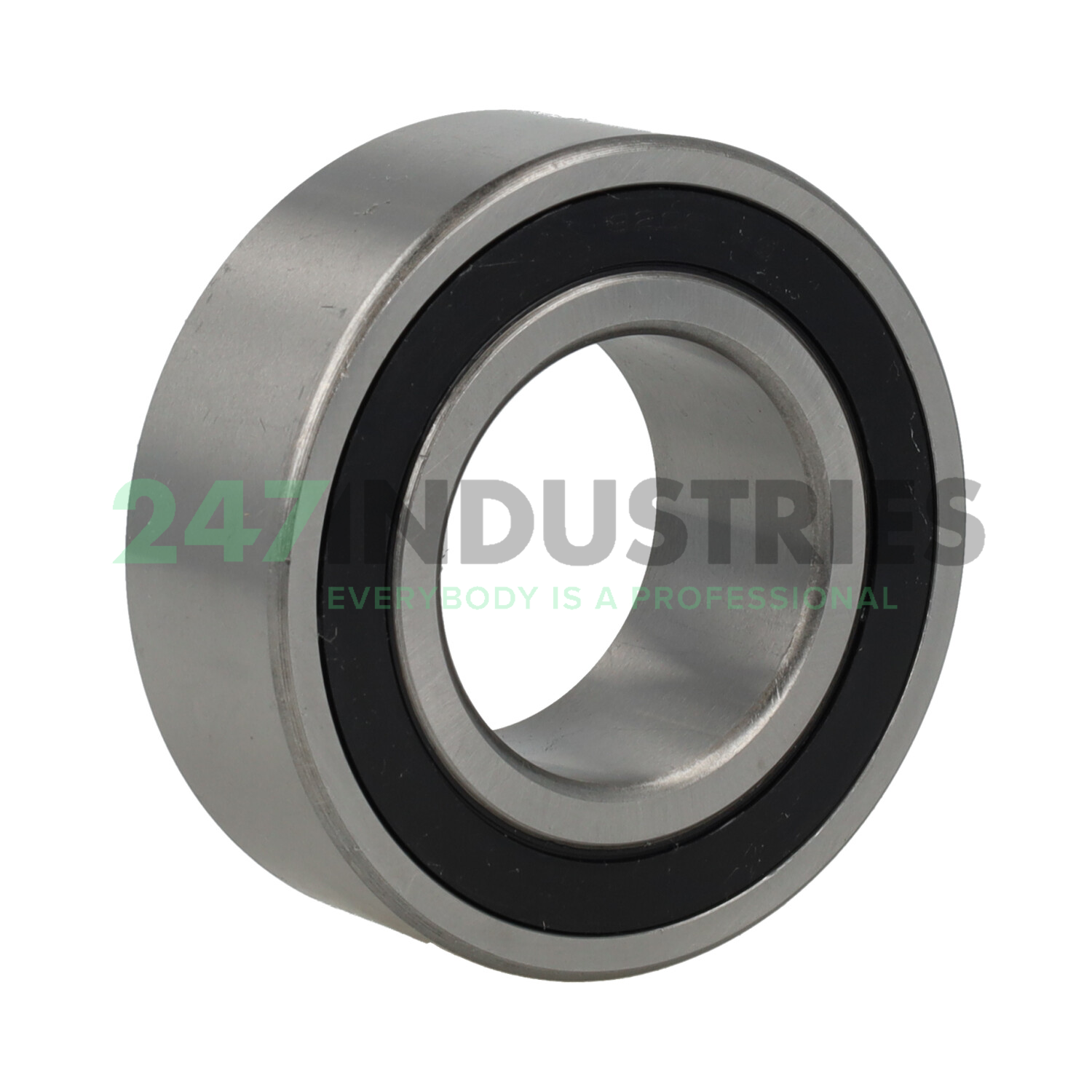

3209 2RS Trans Link

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 30,2
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 1.189

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing

Technical details

1. Availability 1 pc
2. Brand Trans Link
3. Item number 3209 2RS Trans Link
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.64

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
