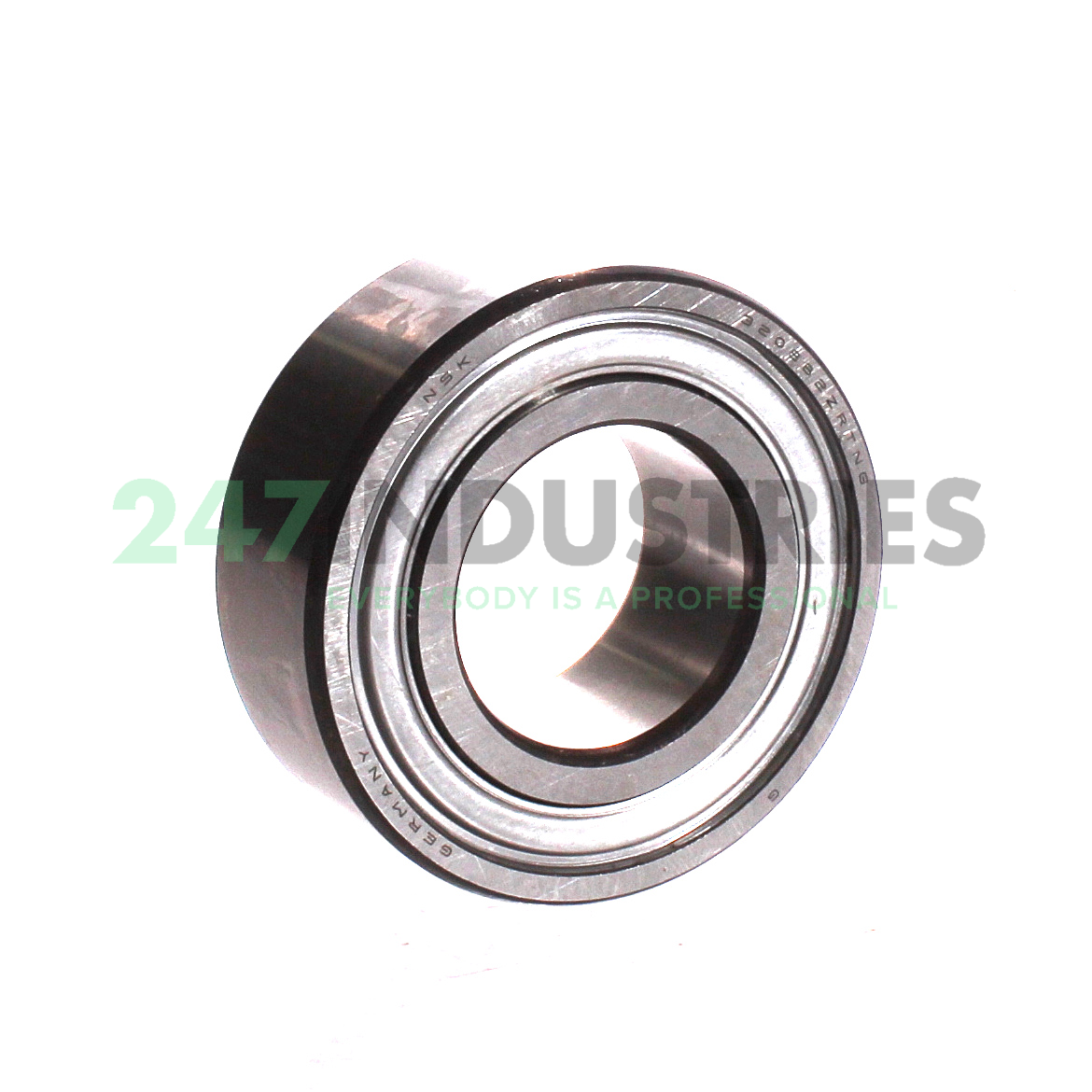

3208B-2ZTN NSK

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 30,2
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.189

Suffix description

1. B 25º Contact Angle
2. 2Z Two Metal Shields
3. TN Cage Made Of Glass-Fibre Reinforced Polyamide 66

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 3208B-2ZTN NSK
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.587

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
