3208A-2RS1TN9 SKF

Name: 3208A-2RS1TN9 SKF
Brand: SKF

€ 84,22 ex VAT

€ 101,91 in VAT

€ 84,22 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

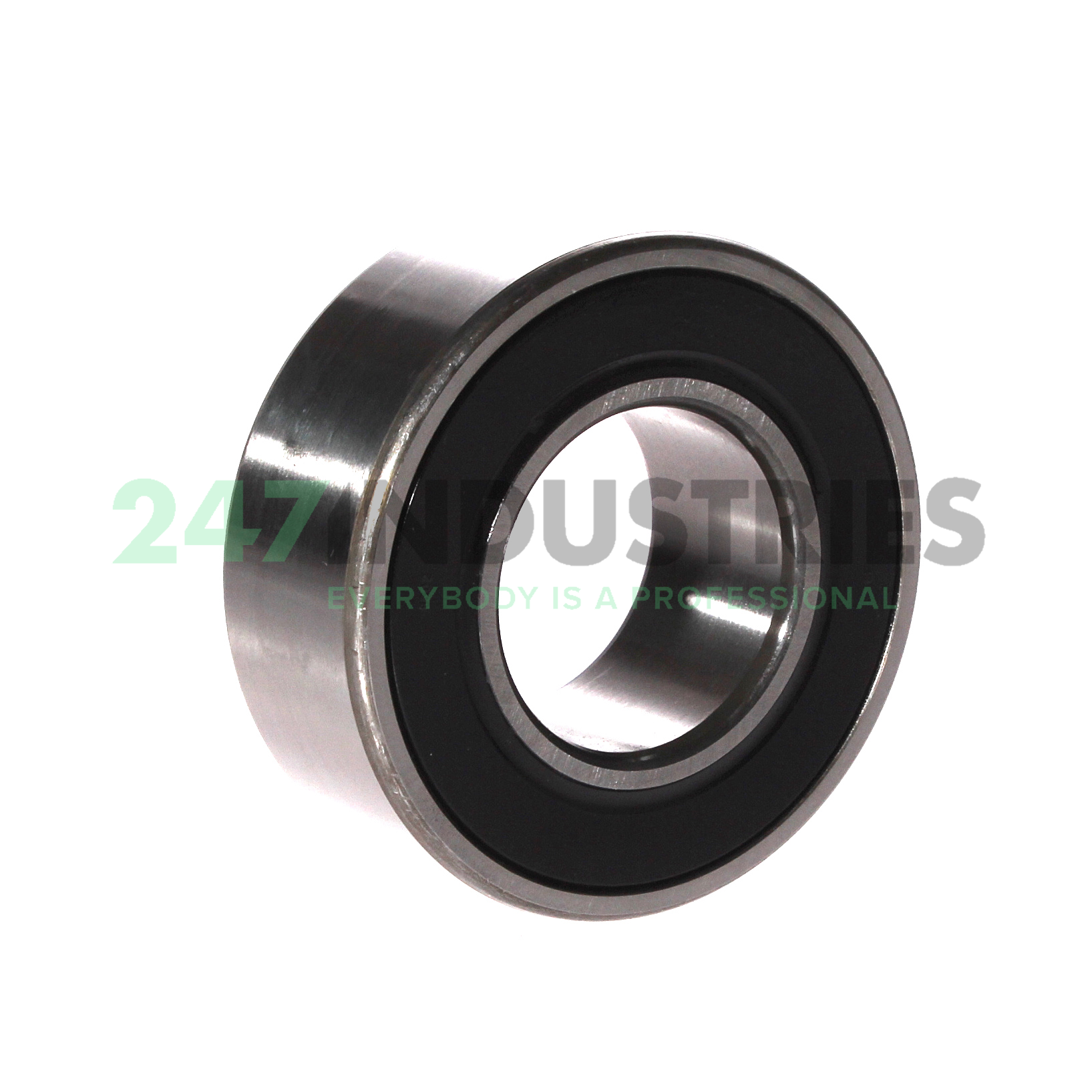

3208A-2RS1TN9 SKF

Angular Contact Ball Bearing Double Row

Stock	1 pc in stock and ready for shipment
Brand	SKF
Article number	3208A-2RS1TN9 SKF
Inside diameter	40mm
Outside diameter	80mm
Width	30,2mm

Product description

The 3208A-2RS1TN9 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Email us at: help@247industries.com Response within 24h

Similar to: 3208A-2RS1TN9 SKF

Loading similair products

Product specifications

Inside diameter 40mm
Outside diameter 80mm
Width 30,2mm

All dimensions

Inner (d) MM 40
Outer (D) MM 80
Width (B) MM 30,2
Inner (d) Inch 1.5748
Outer (D) Inch 3.1496
Width (B) Inch 1.189

Suffix description

2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
