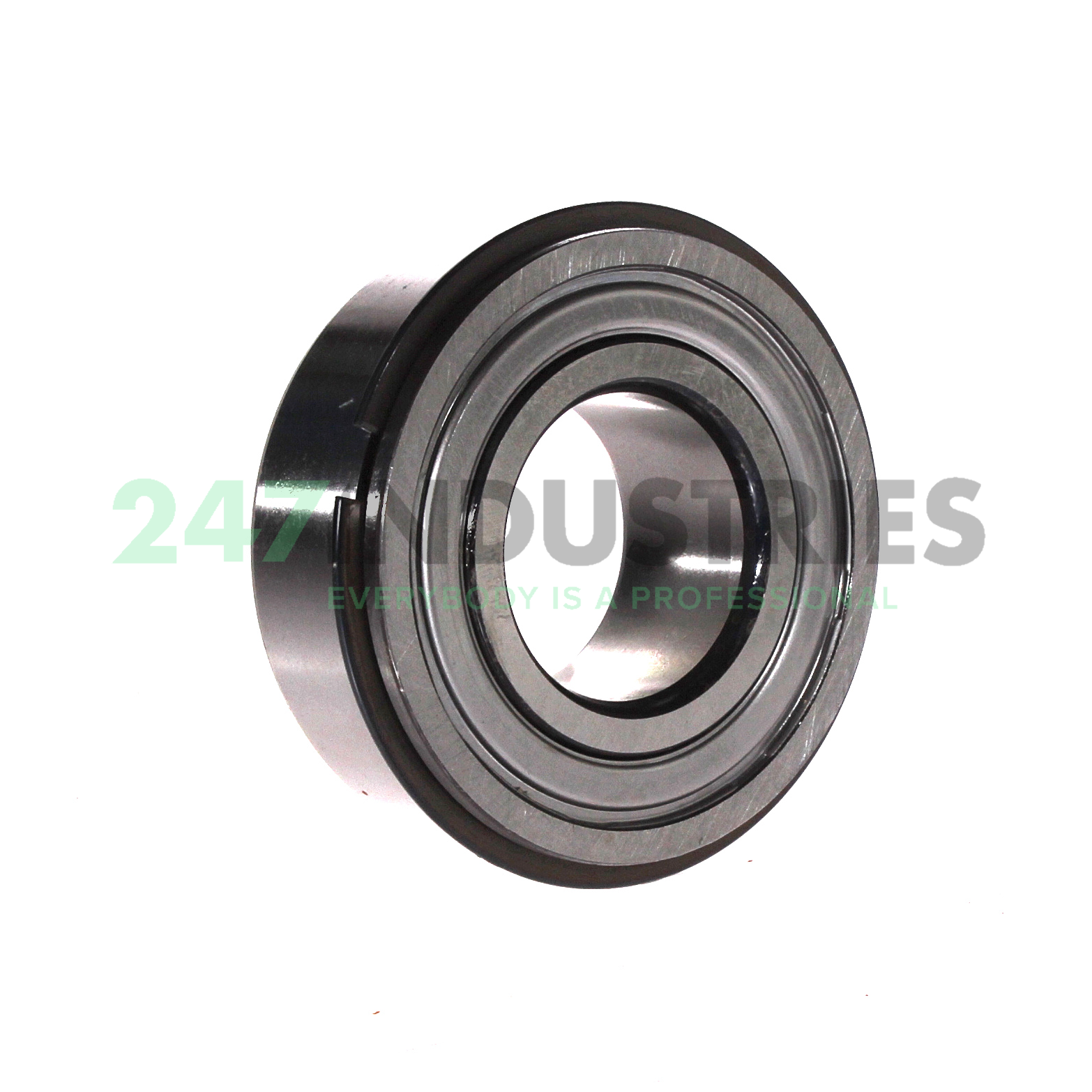

3207B-2ZRNRTNGC3 NSK

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 27
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.063

Suffix description

1. B 25º Contact Angle
2. 2ZR Metal Shields At Each Side Of The Bearing
3. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring
4. TNG Cage Made Of Glass-Fibre Reinforced Polyamide 66
5. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 5 pcs
2. Brand NSK
3. Item number 3207B-2ZRNRTNGC3 NSK
4. EAN 00029176673238
5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.47

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
