3207ATN9 SKF

Name: 3207ATN9 SKF
Brand: SKF

€ 39,43 ex VAT

€ 47,71 in VAT

€ 39,43 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

3207ATN9 SKF

Angular Contact Ball Bearing Double Row

Stock	20 pcs in stock and ready for shipment
Brand	SKF
Article number	3207ATN9 SKF
Inside diameter	35mm
Outside diameter	72mm
Width	27mm

Product description

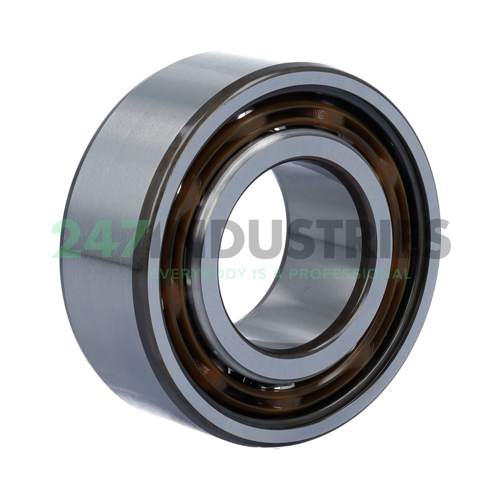

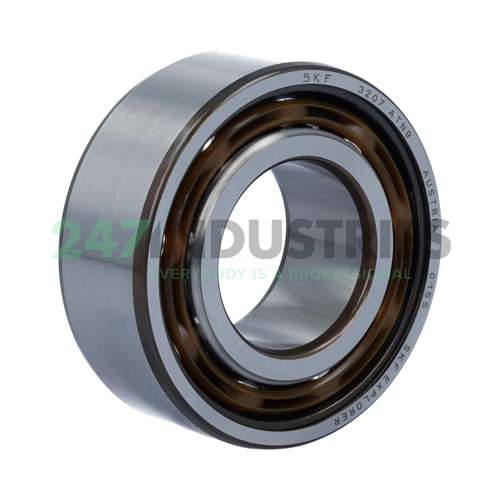

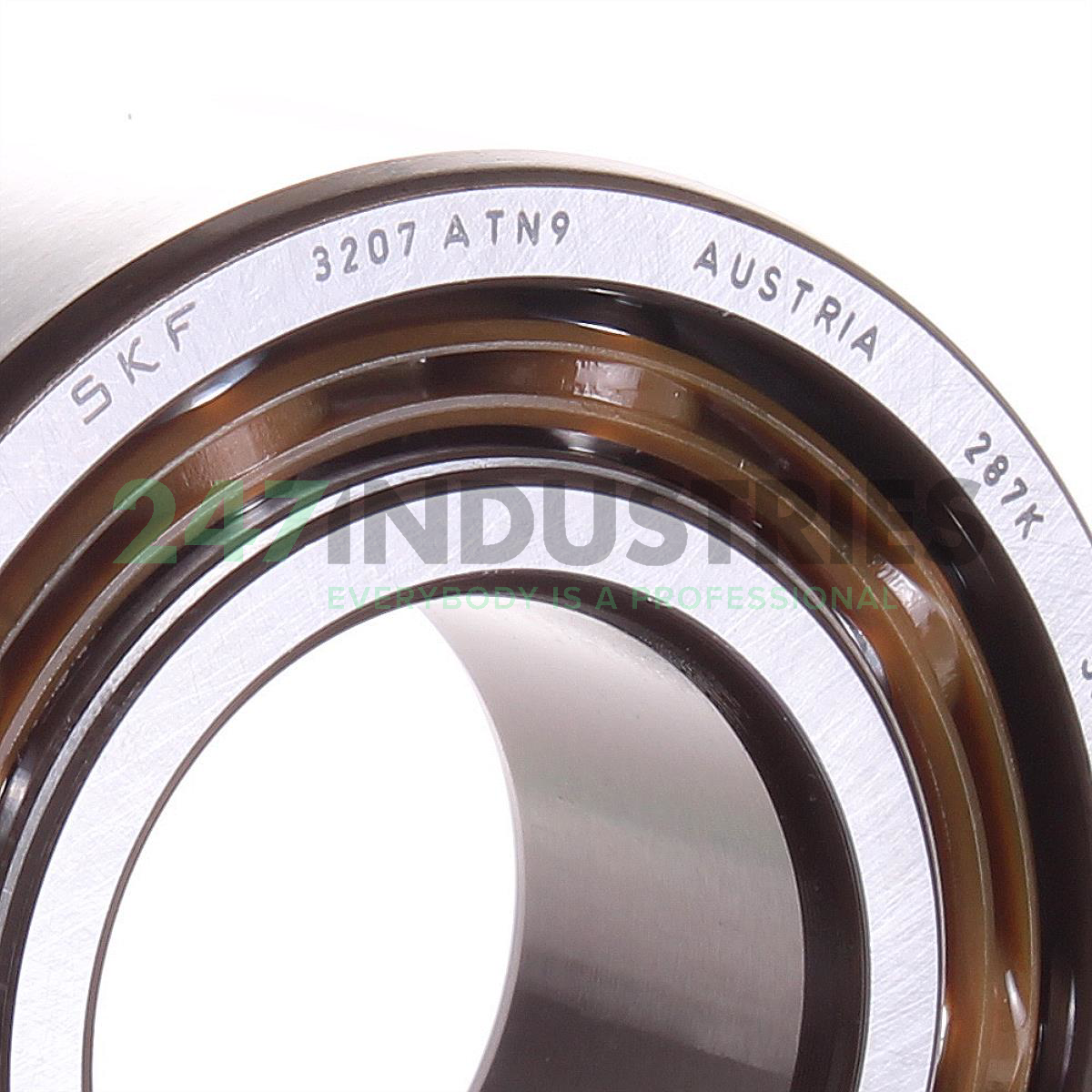

The 3207ATN9 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Start a chat
Call us at: +31 (0)85 00 22 247
Email us at: help@247industries.com Response within 24h

Similar to: 3207ATN9 SKF

Loading similair products

Product specifications

Inside diameter 35mm
Outside diameter 72mm
Width 27mm

All dimensions

Inner (d) MM 35
Outer (D) MM 72
Width (B) MM 27
Inner (d) Inch 1.378
Outer (D) Inch 2.8346
Width (B) Inch 1.063

Suffix description

A Double Row Angular Contact Ball Bearing Without Filling Slots
TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
