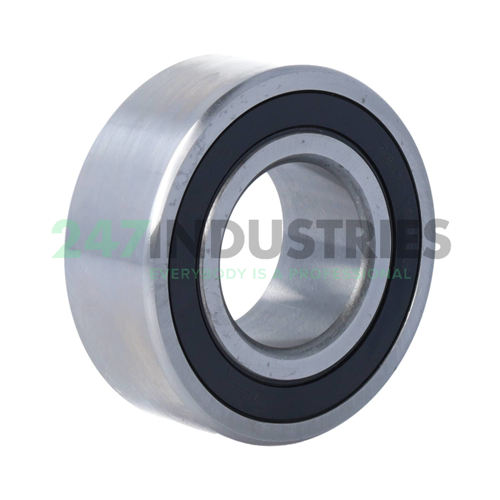

3207-2RS1/TN IBU Fiedler

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 27
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.063

Suffix description

1. 2RS1 Rubber Seals At Each Side Of The Bearing
2. TN Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding

Technical details

1. Availability 6 pcs
2. Brand IBU Fiedler
3. Item number 3207-2RS1/TN IBU Fiedler
4. Also known as 3207A-2RS1TN9
   3207ATN1/2RS
   3207B-2RSRTNG
   3207-B-2RS-TNH

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.451

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
