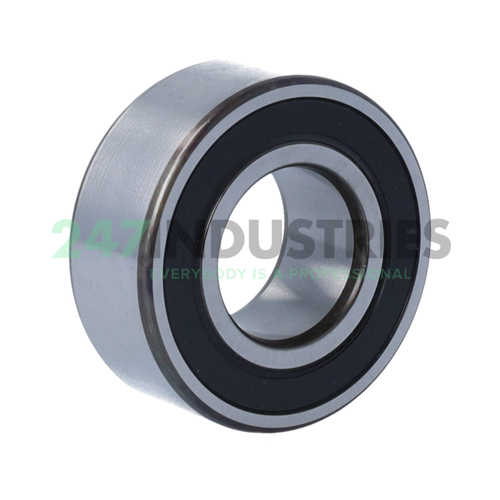

3205A-2RS1TN9/C3VT114 SKF

Double row angular contact ball bearing

Stock
7 pcs in stock and ready for shipment
Brand SKF
Article number 3205A-2RS1TN9/C3VT114 SKF
Inside diameter 25mm
Outside diameter 52mm
Width 20,6mm
Product description

The 3205A-2RS1TN9/C3VT114 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Similar to: 3205A-2RS1TN9/C3VT114 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 52
  3. Width (B) MM 20,6
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 2.0472
  6. Width (B) Inch 0.811

Suffix description

  1. A Double Row Angular Contact Ball Bearing Without Filling Slots
  2. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
  3. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
  4. C3 Internal Clearance Larger Than Normal
  5. VT114 High Temperature Grease

Technical details

  1. Availability 7 pcs
  2. Brand SKF
  3. Item number 3205A-2RS1TN9/C3VT114 SKF
  4. Also known as 3205A-2RS1TN9/C3
  5. EAN 7316570855258
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 0.177

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal 2RS - Rubber Seal on Two Sides
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play C3 Internal Play (Higher than Cn)
  6. Precision Standard Precision
  7. Lubrication 2 - High Temperature Grease
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
