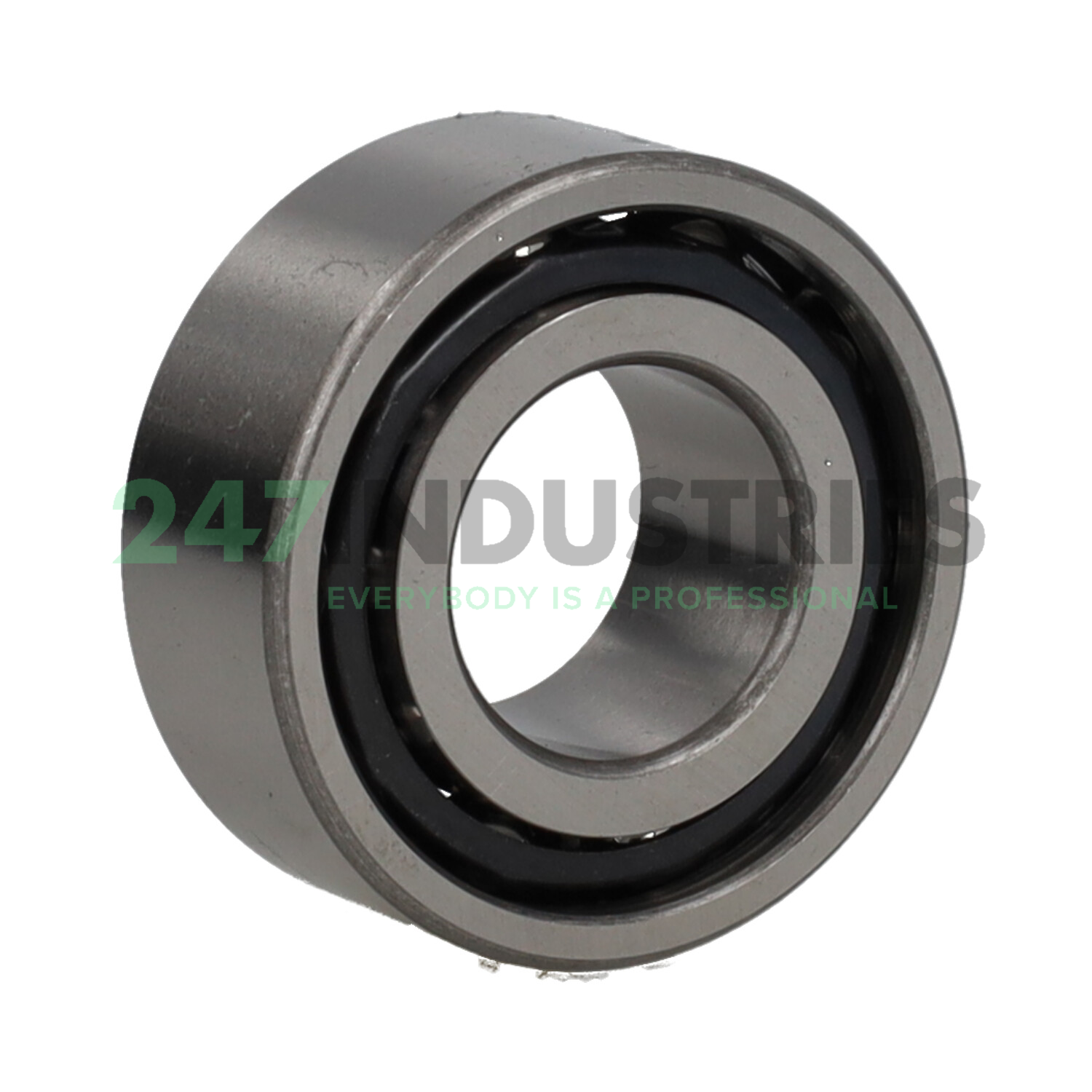

3205-B-J-C3-SQE NKE

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 52
3. Width (B) MM 20,6
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.811

Suffix description

1. B Design Without Filling Slots Have Contact Angles Of 32°
2. J Pressed Steel Cages, Rolling Element Guided
3. C3 Internal Clearance Larger Than Normal
4. SQE Unknown

Technical details

1. Availability 3 pcs
2. Brand NKE
3. Item number 3205-B-J-C3-SQE NKE
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.18

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
