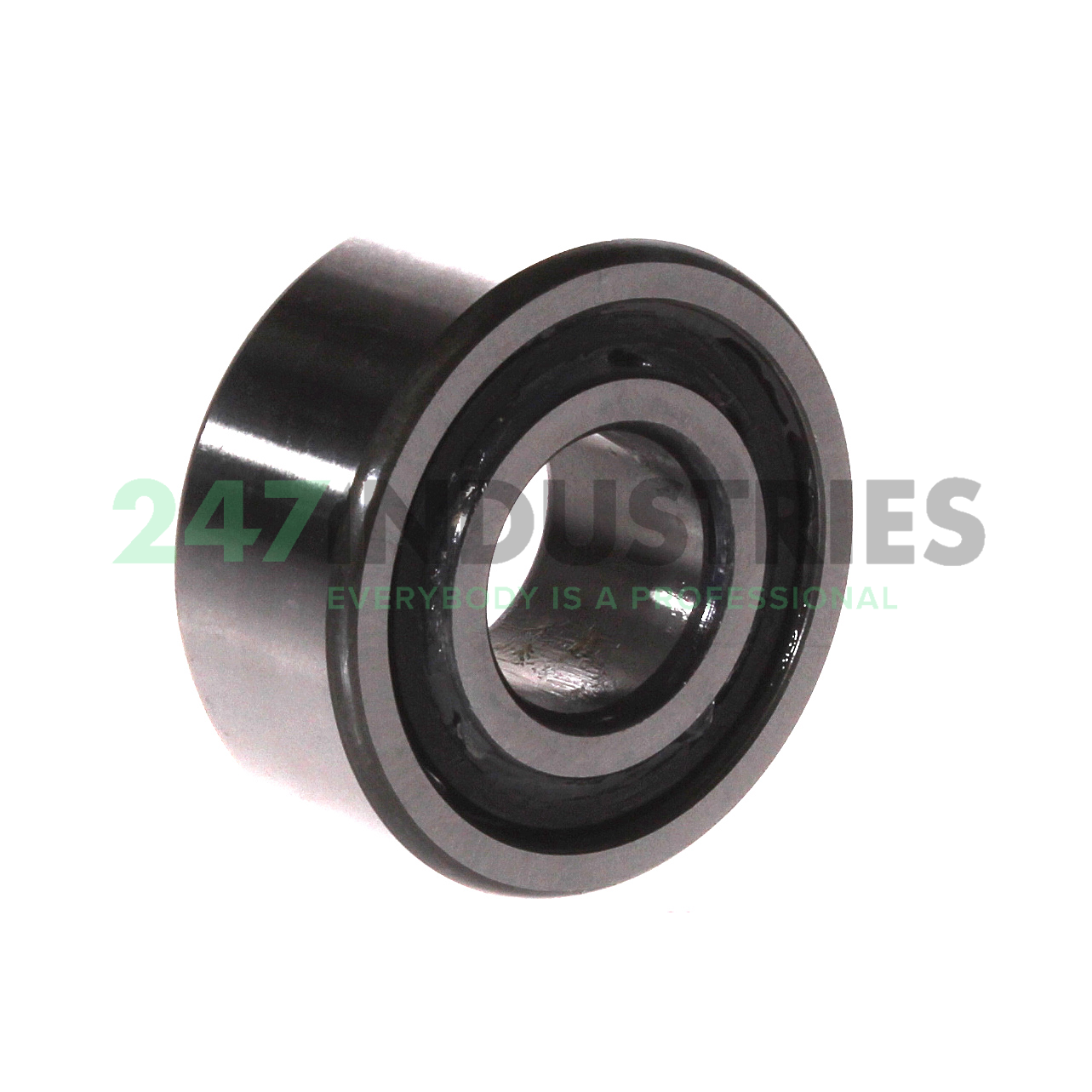

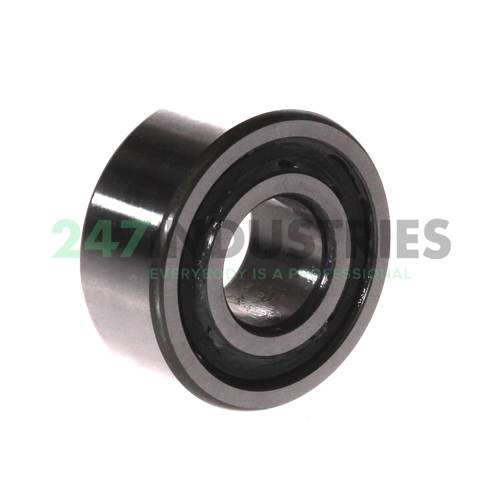

3204BTNG YRLN5 NSK

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 20,6
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.811

Suffix description

1. B 25º Contact Angle
2. TNG Cage Made Of Glass-Fibre Reinforced Polyamide 66
3. YRL Lubricant, Operating Temperature -30 ~ 120°C
4. N Normal Filling 35%
5. 5 Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled

Technical details

1. Availability 14 pcs
2. Brand NSK
3. Item number 3204BTNG YRLN5 NSK
4. Also known as 3204ATN9
   3204B.TVH
   3204-BD-XL-TVH

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.16

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
