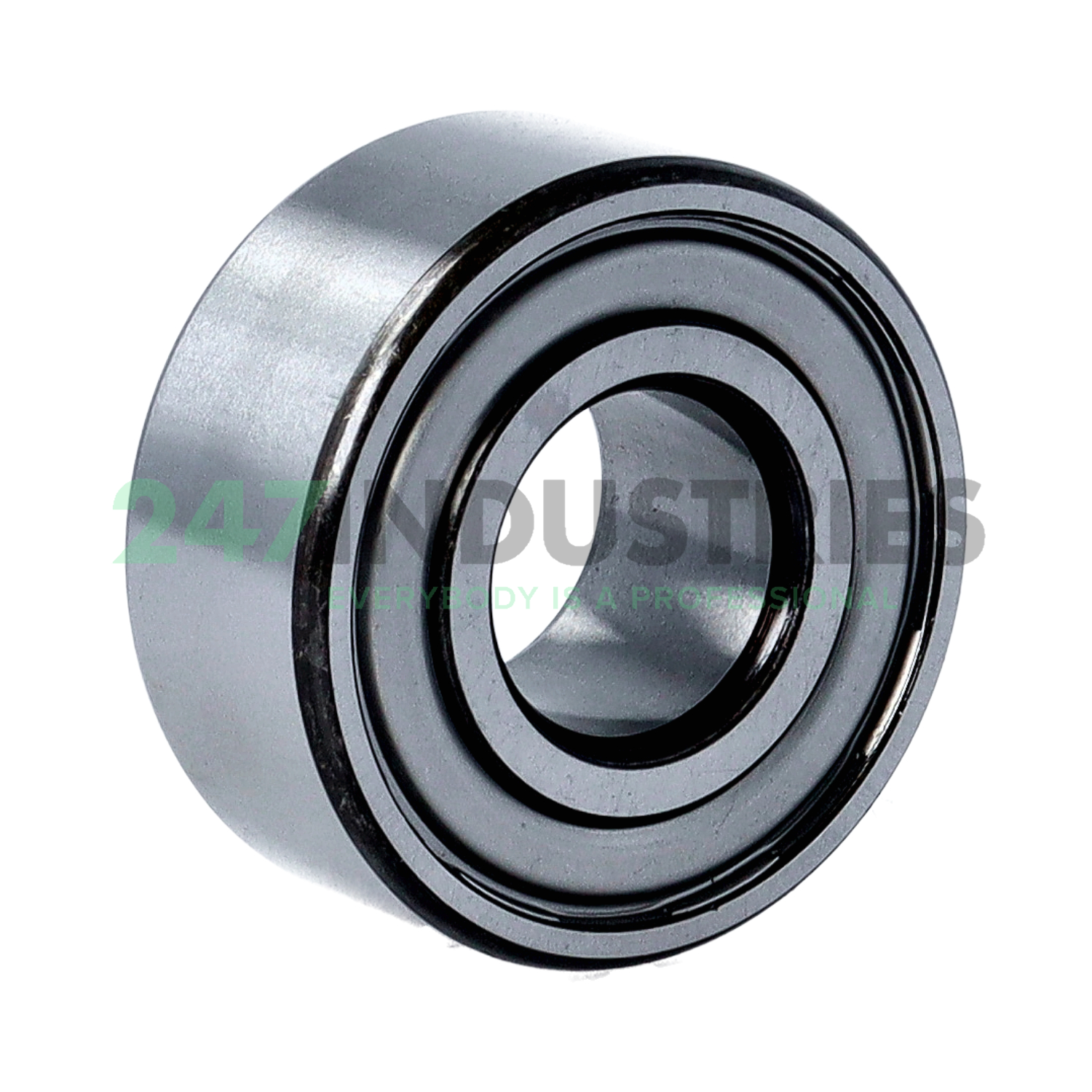

3204B-2ZRTNG YRLN5 NSK

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 20,6
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.811

Suffix description

1. B 25º Contact Angle
2. 2ZR Metal Shields At Each Side Of The Bearing
3. TNG Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
4. YRL Lubricant, Operating Temperature -30 ~ 120°C
5. N Normal Filling 35%

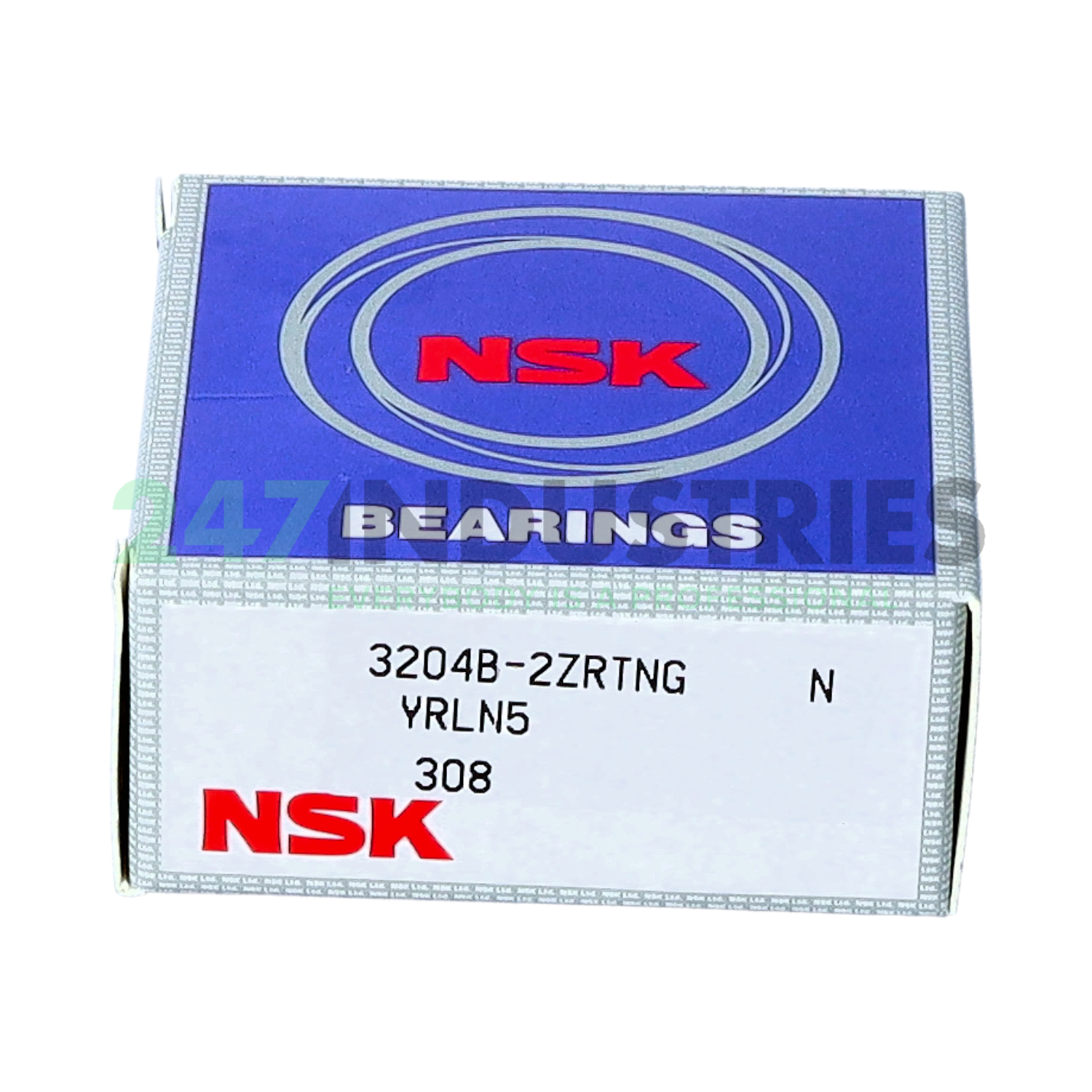

6. 5 Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled

Technical details

1. Availability 8 pcs
2. Brand NSK
3. Item number 3204B-2ZRTNG YRLN5 NSK
4. Also known as 3204B-2ZRTNG

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.1556

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
