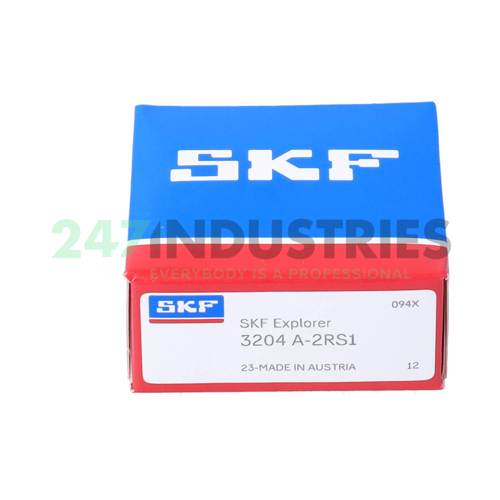

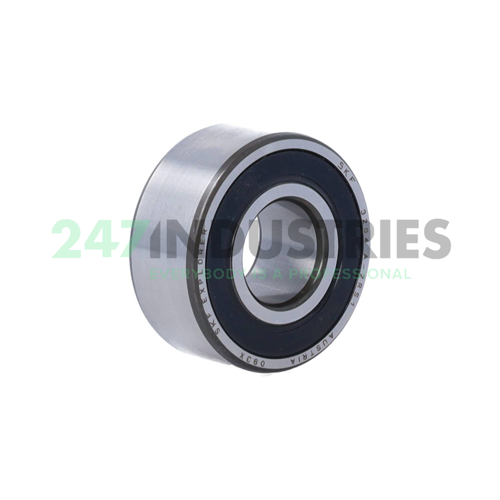

3204A-2RS1 SKF

Double row angular contact ball bearing

Stock
4 pcs in stock and ready for shipment
Brand SKF
Article number 3204A-2RS1 SKF
Inside diameter 20mm
Outside diameter 47mm
Width 20,6mm
Product description

The 3204A-2RS1 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Help with this product

Similar to: 3204A-2RS1 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 47
  3. Width (B) MM 20,6
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 1.8504
  6. Width (B) Inch 0.811

Suffix description

  1. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing

Technical details

  1. Availability 4 pcs
  2. Brand SKF
  3. Item number 3204A-2RS1 SKF
  4. Also known as 3204AJ/2RS
  5. EAN 7316573930846
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 0.155

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal 2RS - Rubber Seal on Two Sides
  3. Cage Type S - Steel or Standard Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
