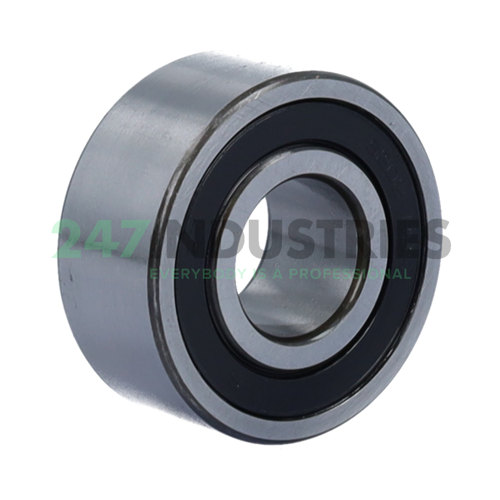

3203B-2RSRTNG NSK

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 40
3. Width (B) MM 17,5
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.689

Suffix description

1. B 25º Contact Angle
2. 2RSR Rubber Seals At Each Side Of The Bearing
3. TNG Cage Made Of Glass-Fibre Reinforced Polyamide 66

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 3203B-2RSRTNG NSK
4. Also known as 3203A-2RS1TN9
   3203ATN1/2RS
   3203-B-2RS-TVH

5. EAN 00029176421501
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.1

Product Properties

1. Contact Angle 25 degrees
2. Bore C - Cylindrical Bore
3. Seal 2RS - Rubber Seal on Two Sides
4. Cage Type P - Plastic Molded Cage
5. External Modification No External Modification
6. Radial Internal Play Cn Normal Internal Play
7. Precision Standard Precision
8. Lubrication Standard Lubrication
9. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
10. Split Inner ring / Outer ring Standard
