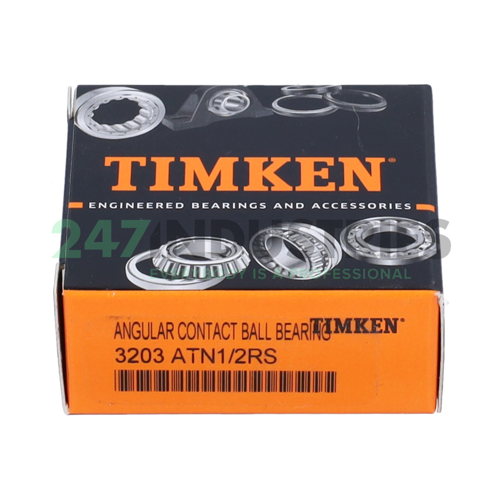

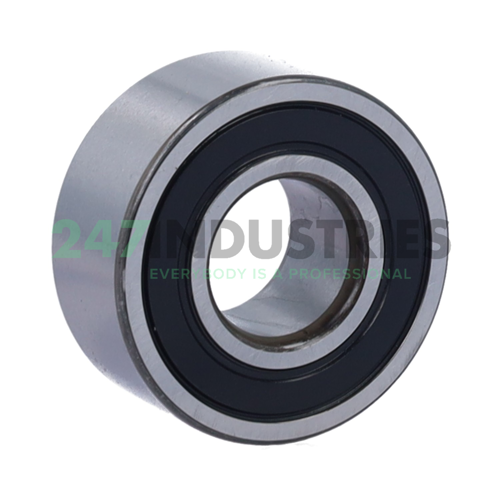

3203ATN1/2RS Timken

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 40
3. Width (B) MM 17,5
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.689

Suffix description

1. A No Filling Slots
2. TN1 Molded Cage Made Of Polyamide Resin
3. 2RS Rubber Seals At Each Side Of The Bearing

Technical details

1. Availability 30 pcs
2. Brand Timken
3. Item number 3203ATN1/2RS Timken
4. Also known as 3203A-2RS1TN9
   3203-BB-2RSR-TVH

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.1

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
