3203A-2RS1TN9 SKF

€ 31,83 ex VAT
€ 38,52 in VAT
€ 38,52 in VAT
€ 31,83 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

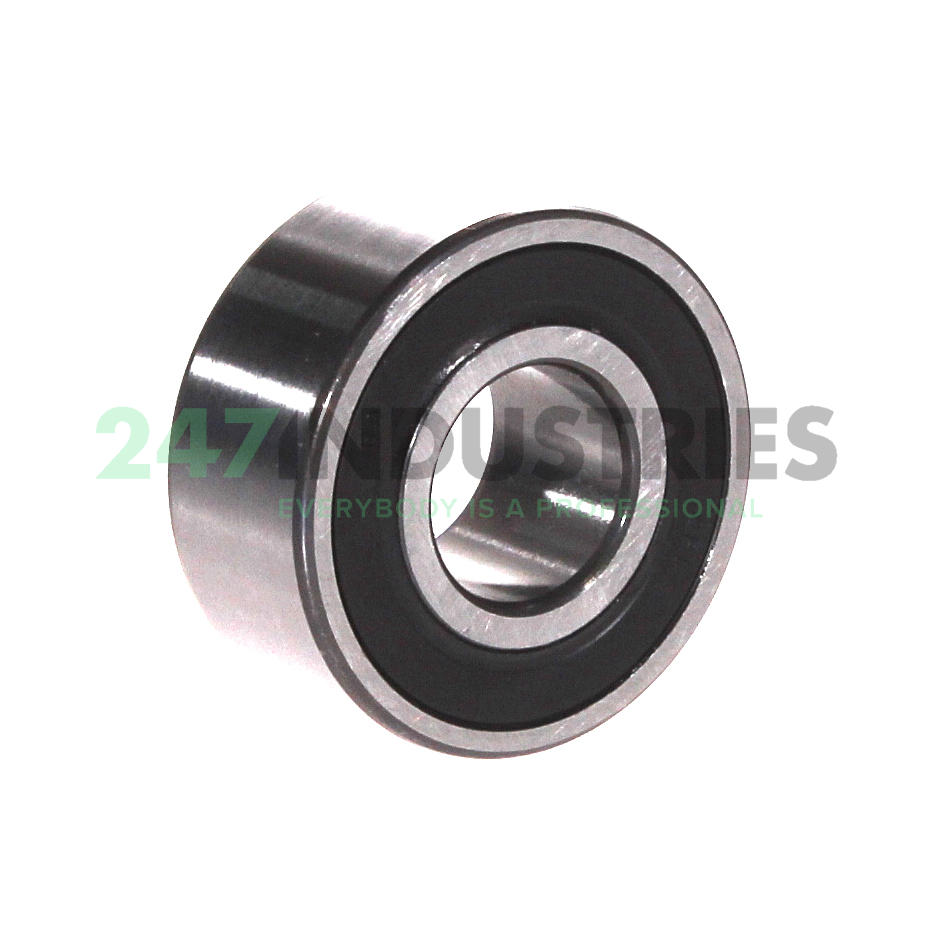

3203A-2RS1TN9 SKF

Double row angular contact ball bearing

Stock
10 pcs in stock and ready for shipment
Brand SKF
Article number 3203A-2RS1TN9 SKF
Inside diameter 17mm
Outside diameter 40mm
Width 17,5mm
Product description

The 3203A-2RS1TN9 SKF is a double-row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single-row angular contact ball bearings in O-arrangement but is slightly narrower. Double-row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Similar to: 3203A-2RS1TN9 SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 17
  2. Outer (D) MM 40
  3. Width (B) MM 17,5
  4. Inner (d) Inch 0.6693
  5. Outer (D) Inch 1.5748
  6. Width (B) Inch 0.689

Suffix description

  1. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
  2. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered

Technical details

  1. Availability 10 pcs
  2. Brand SKF
  3. Item number 3203A-2RS1TN9 SKF
  4. Also known as 3203ATN1/2RS
    3203-B-2RS-TVH
  5. EAN 7316577651624
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 0.1

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal 2RS - Rubber Seal on Two Sides
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard
Show all details Show less
