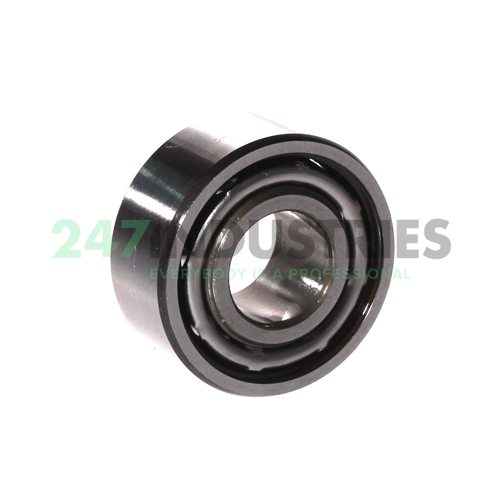

3203-AN01 INA

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 40
3. Width (B) MM 17,5
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.689

Suffix description

1. AN01 Equipped With Additional Lubrication Holes In The Outer Ring

Technical details

1. Availability 9 pcs
2. Brand INA
3. Item number 3203-AN01 INA
4. Also known as 0009321240000

5. EAN 4054365728020
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.095

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-03
2. ECLASS2 number 23-05-08-03
