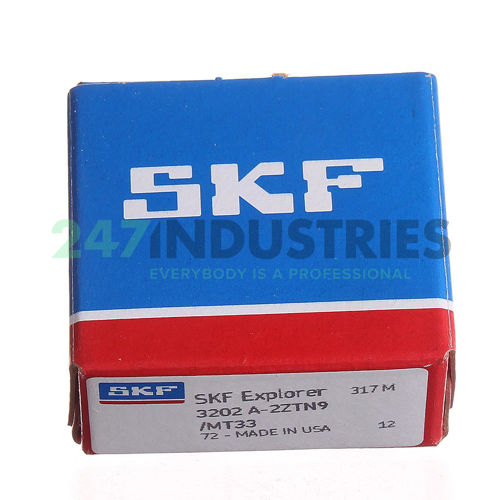

3202A-2ZTN9/MT33 SKF

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 35
3. Width (B) MM 15,9
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.378
6. Width (B) Inch 0.626

Suffix description

1. A Double Row Angular Contact Ball Bearing Without Filling Slots
2. 2Z Shield Of Pressed Sheet Steel On Both Sides Of The Bearing
3. TN9 Injection Moulded Snap-Type Cage Of Glass Fibre Reinforced Polyamide 6,6, Ball Centered
4. MT33 Lithium Grease, Medium Temp. 74 cSt @ 40°C, -30 ~ 120°C, A Two-Figure Number Following MT Identifies The Actual Grease. An Additional Letter Or Letter/Figure Combination As Mentioned Under "HT" Identifies Filling Degrees Other Than Standard. Examples: MT33 Or MT37F9

Technical details

1. Availability 24 pcs
2. Brand SKF
3. Item number 3202A-2ZTN9/MT33 SKF
4. Also known as 3202A-2ZTN9
   3202-BD-2Z-TVH
   3202-BD-XL-2Z-TVH

5. EAN 7316570248449
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.07

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication M - Grease with Lithium Thickener
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
