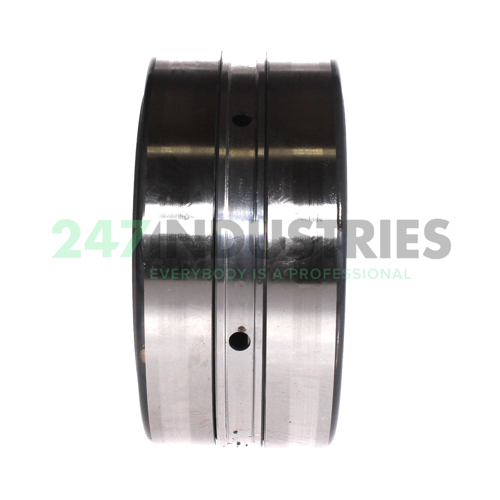

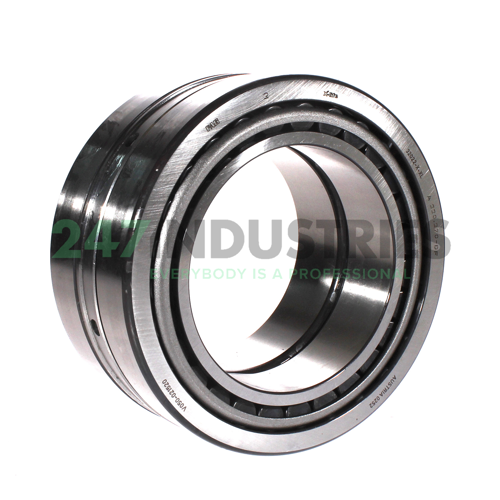

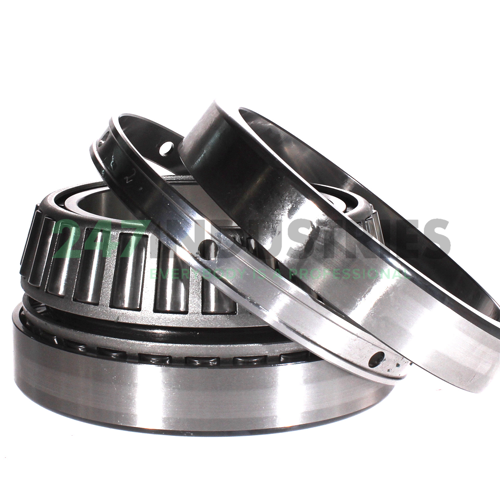

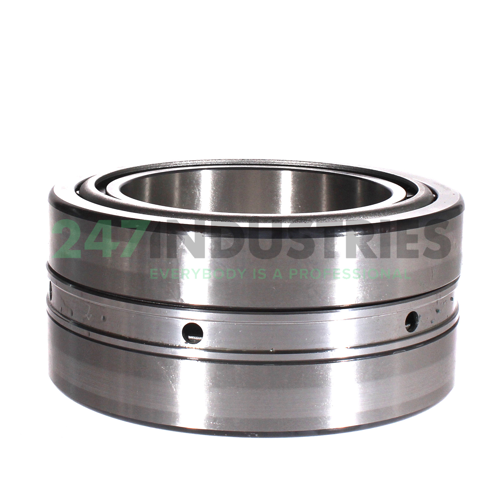

32022-X-XL-DF-A220-270 FAG

All dimensions

1. Inner (d) MM 110
2. Outer (D) MM 170
3. Width (B) MM 76
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 6.6929
6. Width (B) Inch 2.9921
7. Inner ring total width (2B) mm 76
8. Outer ring total width (2T) mm 76

Suffix description

1. X External Dimensions Matched To International Standards
2. XL X-Life
3. DF Two Tapered Roller Bearings Matched In An X Arrangement,With An Intermediate Ring Between The Outer Rings
4. A220-270 Axial Clearance In µm

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 32022-X-XL-DF-A220-270 FAG
4. Also known as 0837046554081
   32022
   32022-X
   32022-X-DF-A220-270

5. EAN 4054364325466
6. Category Tapered Roller Bearing Single Row (paired metric)

Weight and Dimensions

1. Weight (kg) 6.31

Product Properties

1. Tapered Roller Pair Internal Play 220-270µm

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 790000
2. Limiting speed (n G) 4350
3. Thermal speed rating (n ϑr) 2440
