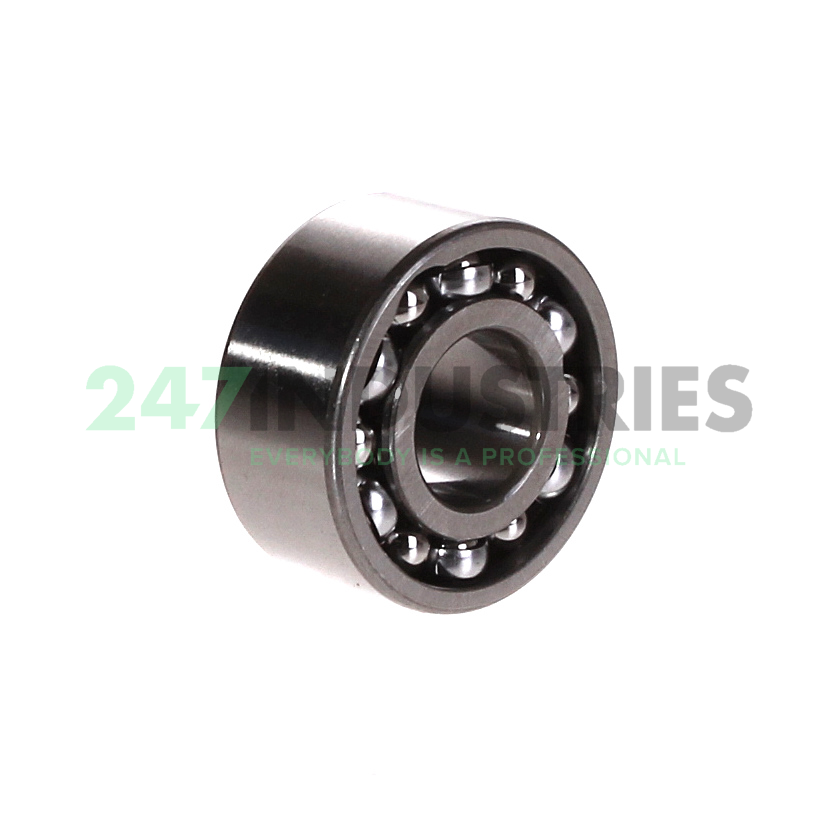

3202 NTN

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 35
3. Width (B) MM 15,9
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.378
6. Width (B) Inch 0.626

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 3202 NTN
4. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.064

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
