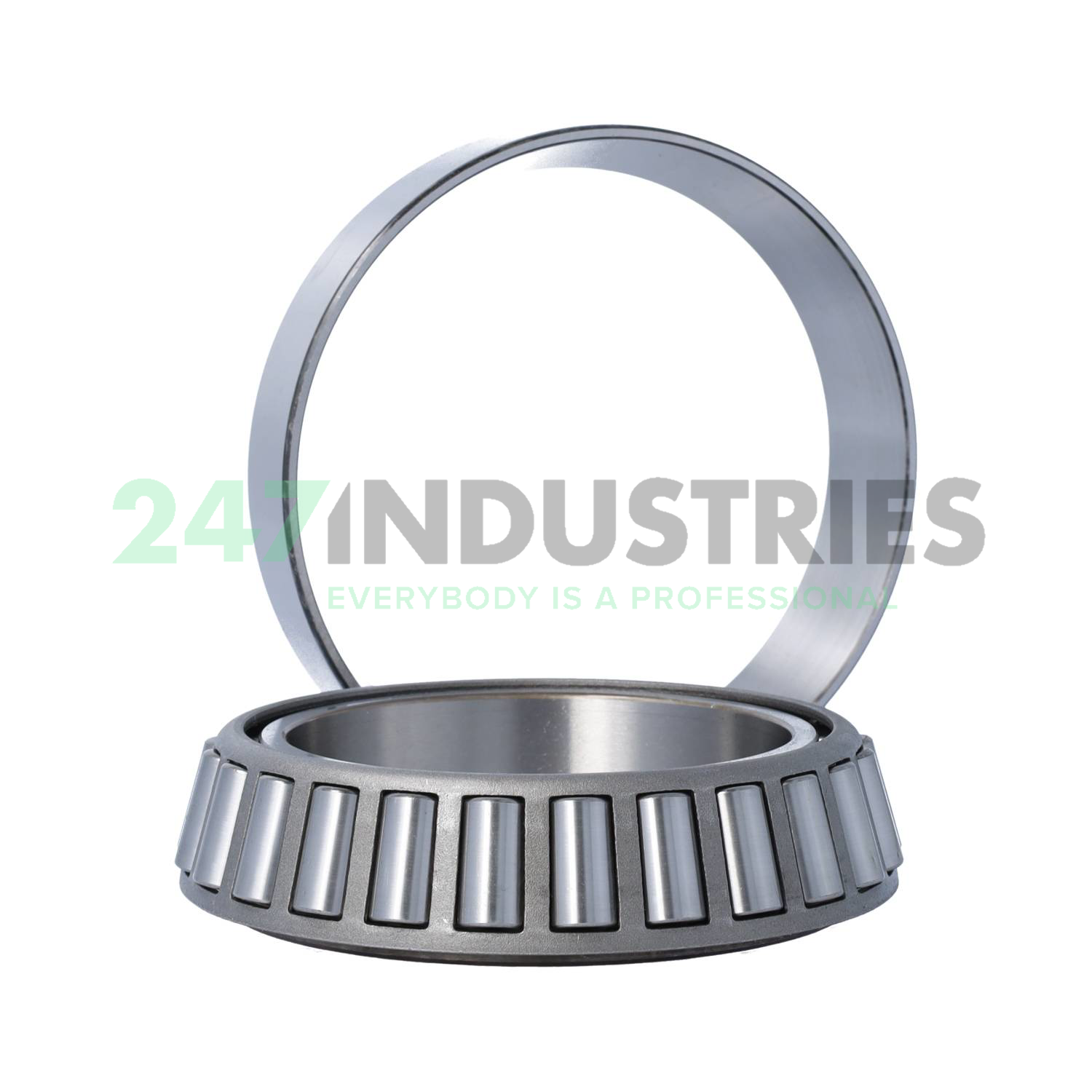

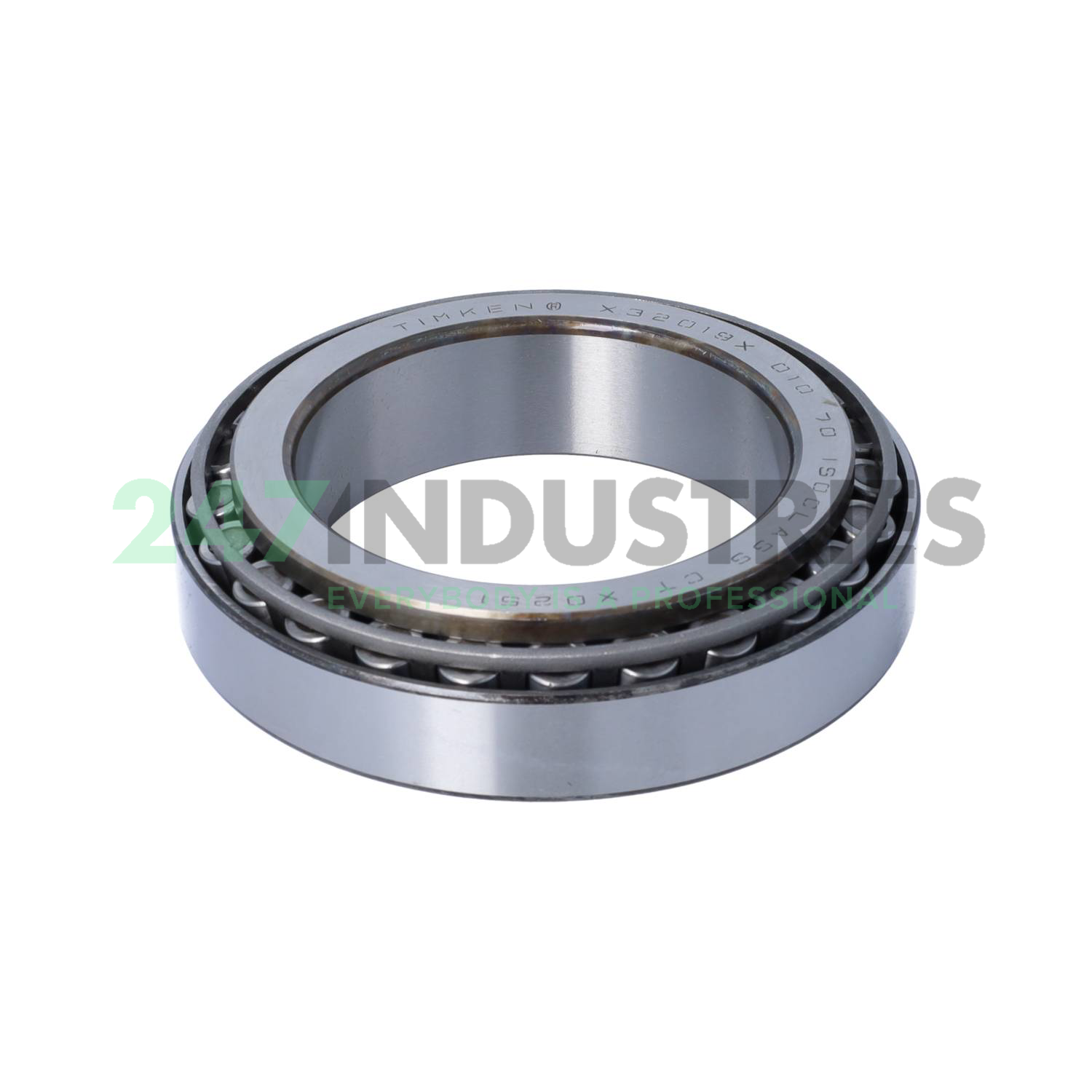

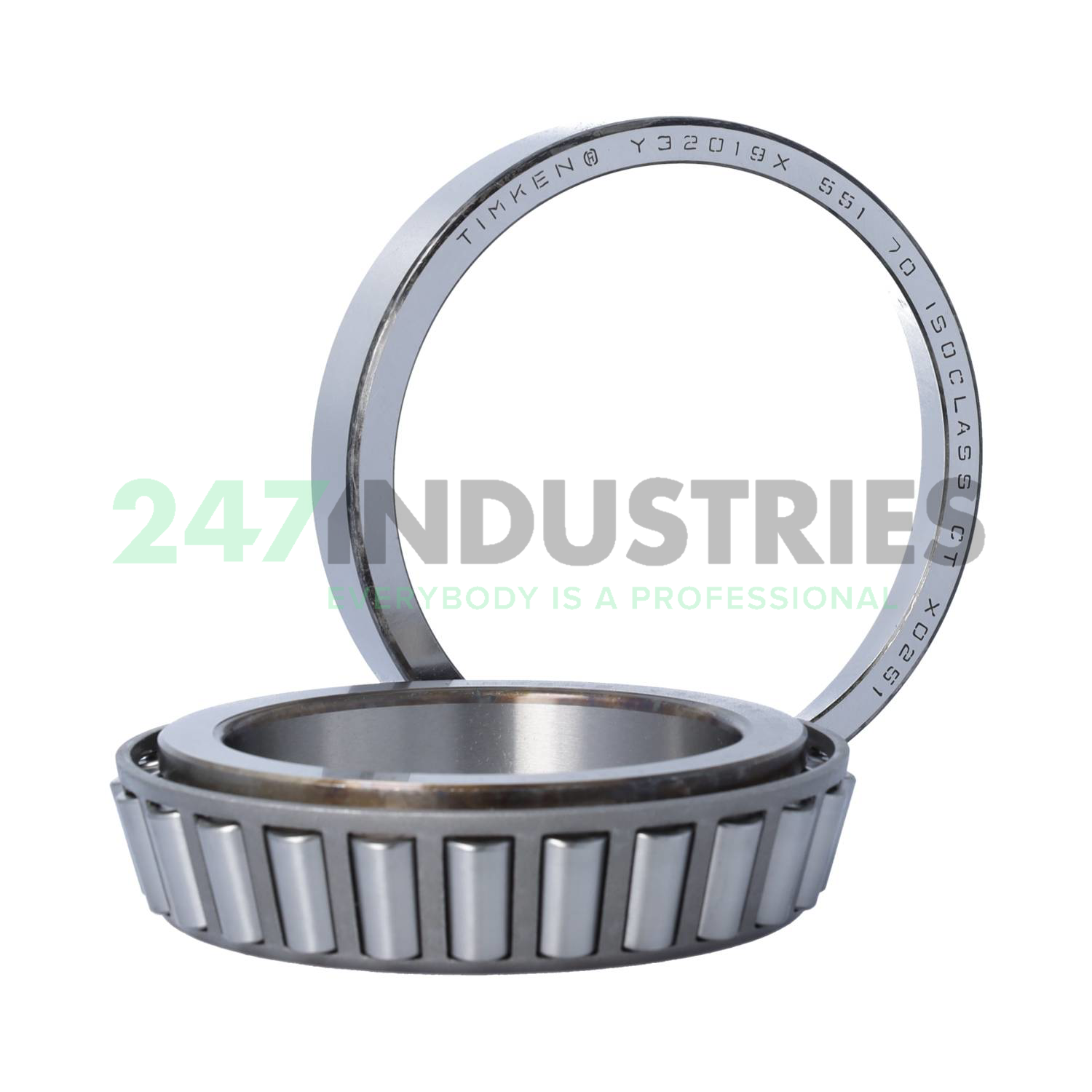

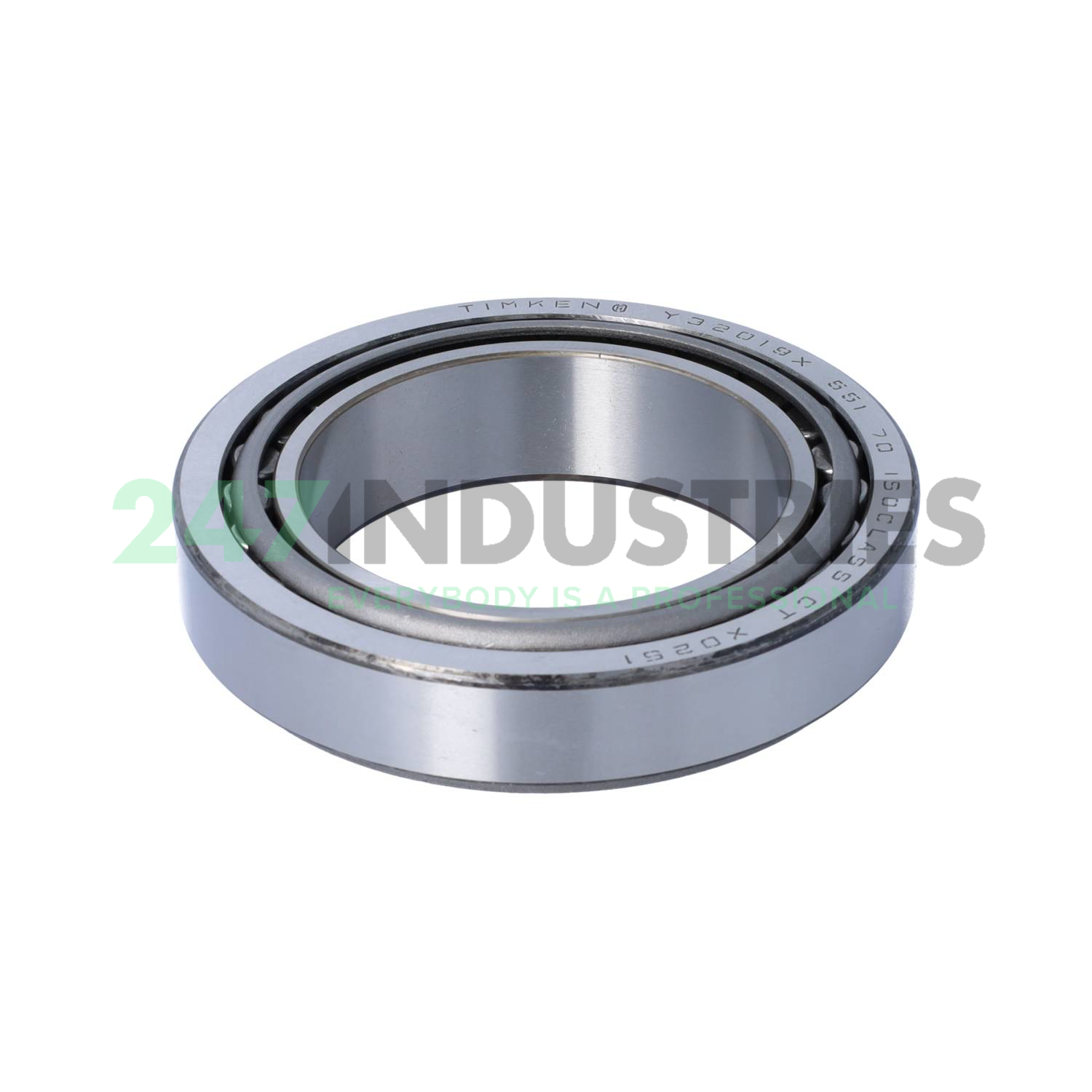

32019X Timken

Single-row tapered roller bearing

Stock
1 pc in stock and ready for shipment
Brand Timken
Article number 32019X Timken
Inside diameter 95mm
Outside diameter 145mm
Width 32mm
Product description

The 32019X Timken is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The 32019X Timken is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Help with this product

Similar to: 32019X Timken

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 95
  2. Outer (D) MM 145
  3. Width (B) MM 32
  4. Inner (d) Inch 3.7402
  5. Outer (D) Inch 5.7087
  6. Width (B) Inch 1.2598

Suffix description

  1. X (Cone/Inner Race And Cup/Outer Race) The Suffix 'X' Has Two Meanings: 1) Special Feature Bearing (Non-Interchangeable With Bearings Having The Same Basic Part Number). 2) ISO Bearing With Same Boundary Dimensions As Basic Part Number But With Different Internal Geometry, Yielding Increased Rating

Technical details

  1. Availability 1 pc
  2. Brand Timken
  3. Item number 32019X Timken
  4. Also known as 32019X-90KA1
    32019X-90NA2
    32019X-9X026
    32019XM-9X019
    32019XUM-90KM5
    SET1049
  5. Category Tapered Roller Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 1.91

Product Properties

  1. Precision Standard Precision
Show all details Show less
