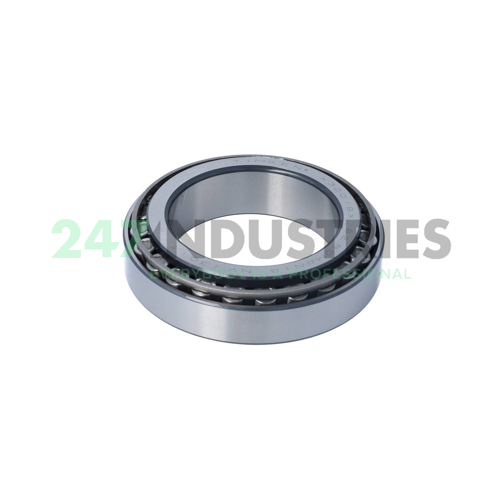

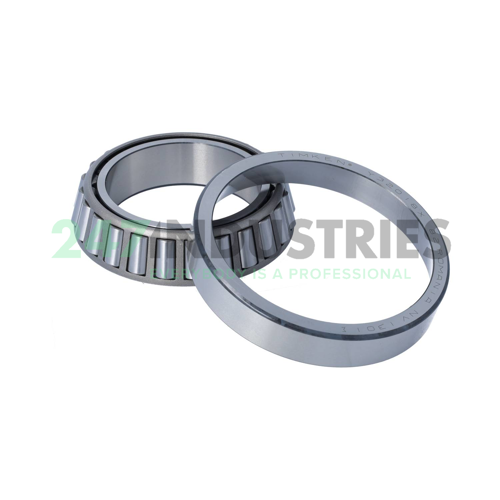

32018X-90KC5 Timken

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 140
3. Width (B) MM 32
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.2598

Suffix description

1. X (Cone/Inner Race And Cup/Outer Race) The Suffix 'X' Has Two Meanings: 1) Special Feature Bearing (Non-Interchangeable With Bearings Having The Same Basic Part Number). 2) ISO Bearing With Same Boundary Dimensions As Basic Part Number But With Different Internal Geometry, Yielding Increased Rating
2. 90KC5 Inspection Code. (Can Be Used As Standard)

Technical details

1. Availability 12 pcs
2. Brand Timken
3. Item number 32018X-90KC5 Timken
4. Also known as 32018X
   SET1048

5. EAN 0053893832470
6. Category Tapered Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.8

Product Properties

1. Precision Standard Precision
