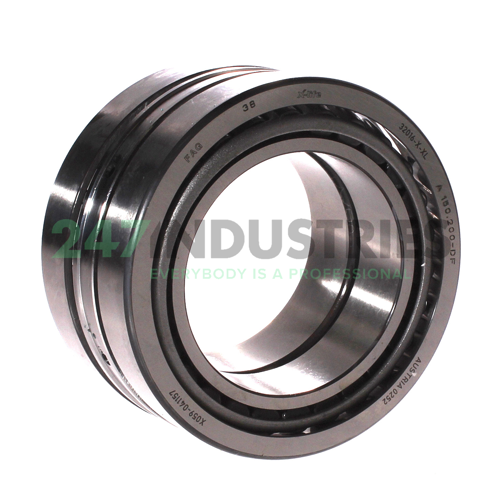

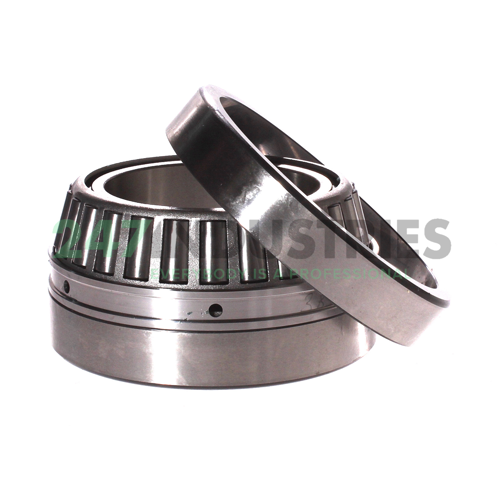

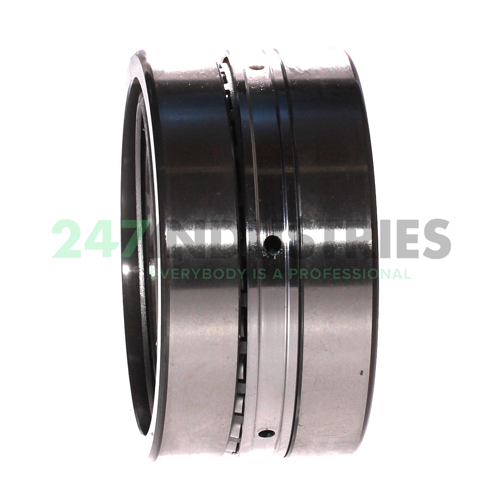

32016-X-XL-DF-A150-200 FAG

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 125
3. Width (B) MM 58
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 4.9213
6. Width (B) Inch 2.2835
7. Inner ring total width (2B) mm 58
8. Outer ring total width (2T) mm 58

Suffix description

1. X External Dimensions Matched To International Standards
2. XL X-Life
3. DF Two Tapered Roller Bearings Matched In An X Arrangement,With An Intermediate Ring Between The Outer Rings
4. A150-200 Axial Clearance In µm

Technical details

1. Availability 5 pcs
2. Brand FAG
3. Item number 32016-X-XL-DF-A150-200 FAG
4. Also known as 0832415234082
   32016
   32016-X

5. EAN 4054364200688
6. Category Tapered Roller Bearing Single Row (paired metric)

Weight and Dimensions

1. Weight (kg) 2.66

Product Properties

1. Tapered Roller Pair Internal Play 150-200µm

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 425000
2. Limiting speed (n G) 6000
3. Thermal speed rating (n ϑr) 3450

Downloads and links

1. X-life brochure X-life brochure
