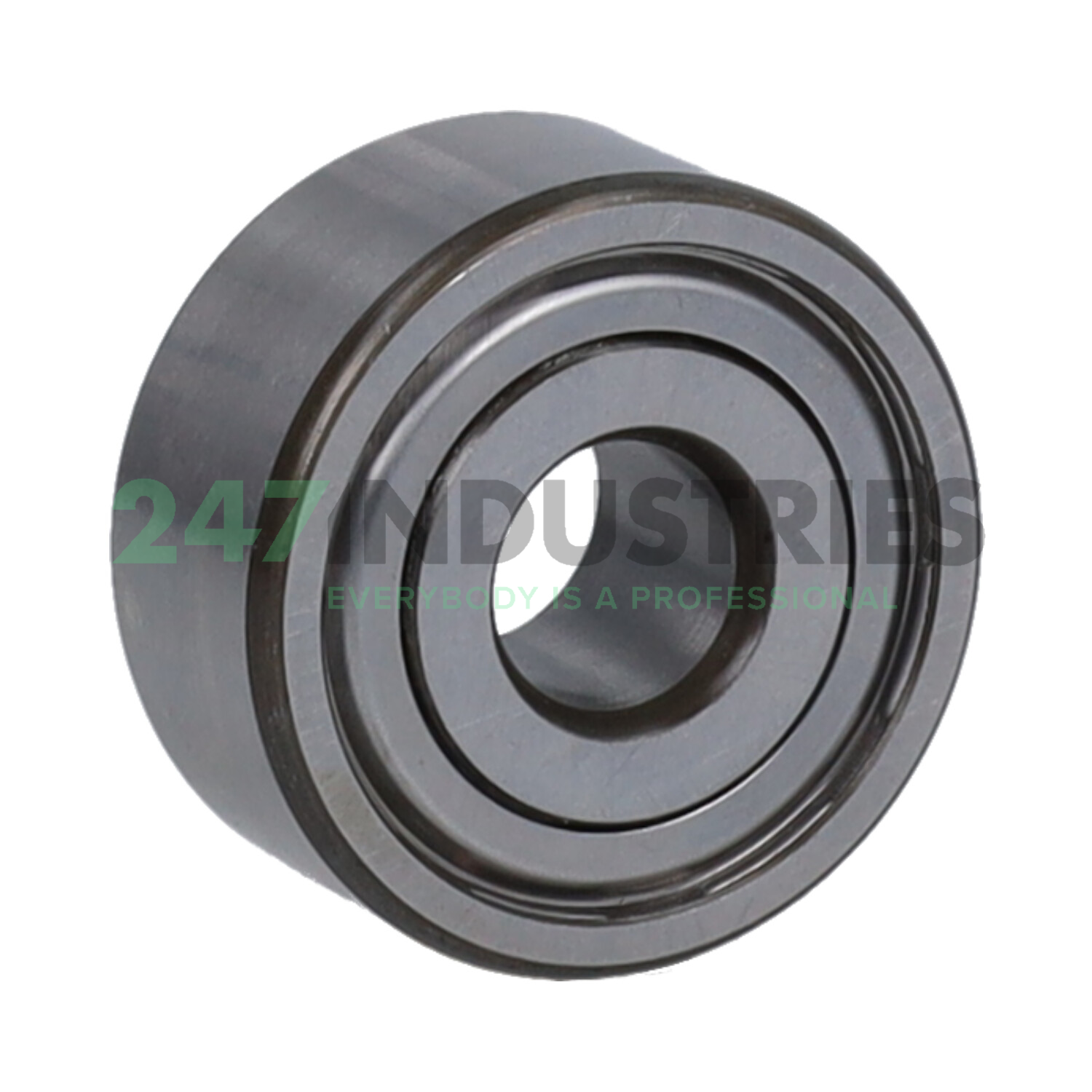

3200B-2ZRTNGC3 N YRLN5 NSK

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 30
3. Width (B) MM 14
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 1.1811
6. Width (B) Inch 0.5512

Suffix description

1. B 25º Contact Angle
2. 2ZR Metal Shields At Each Side Of The Bearing
3. TNG Solid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
4. C3 Internal Clearance Larger Than Normal
5. N Normal Filling 35%
6. YRL Lubricant, Operating Temperature -30 ~ 120°C
7. 5 Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled

Technical details

1. Availability 1 pc
2. Brand NSK
3. Item number 3200B-2ZRTNGC3 N YRLN5 NSK
4. Also known as 3200B-2ZRTNGC3
   3200B-2ZTNC3
   3200-BB-2Z-TVH-C3

5. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.0532

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard
