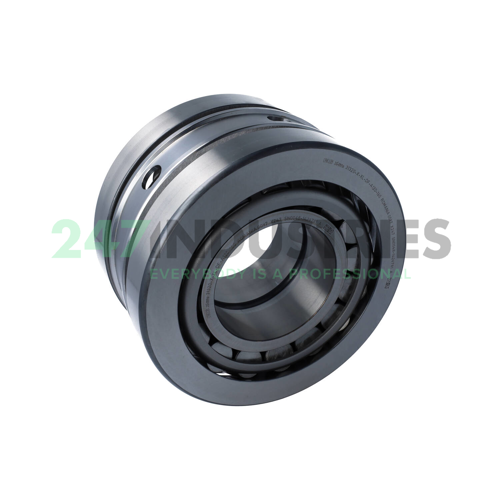

31320-X-XL-DF-A120-160 FAG

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 215
3. Width (B) MM 113
4. Inner (d) Inch 3.937
5. Outer (D) Inch 8.4646
6. Width (B) Inch 4.4488
7. Inner ring total width (2B) mm 102
8. Outer ring total width (2T) mm 113

Suffix description

1. X External Dimensions Matched To International Standards
2. XL X-Life
3. DF Two Tapered Roller Bearings Matched In An X Arrangement,With An Intermediate Ring Between The Outer Rings
4. A120-160 Axial Clearance In µm

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number 31320-X-XL-DF-A120-160 FAG
4. Also known as 0926207364080
   31320
   31320-X
   31320-X-DF-A120-160

5. EAN 4054371344771
6. Category Tapered Roller Bearing Single Row (paired metric)

Weight and Dimensions

1. Weight (kg) 18

Product Properties

1. Tapered Roller Pair Internal Play 120-160µm

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 960000
2. Limiting speed (n G) 3500
3. Thermal speed rating (n ϑr) 2160
