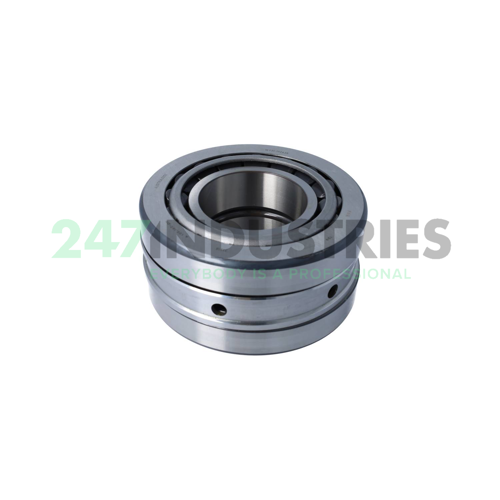

31318-DF-A120-160 FAG

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 190
3. Width (B) MM 93
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 7.4803
6. Width (B) Inch 3.6614
7. Inner ring total width (2B) mm 86
8. Outer ring total width (2T) mm 93

Suffix description

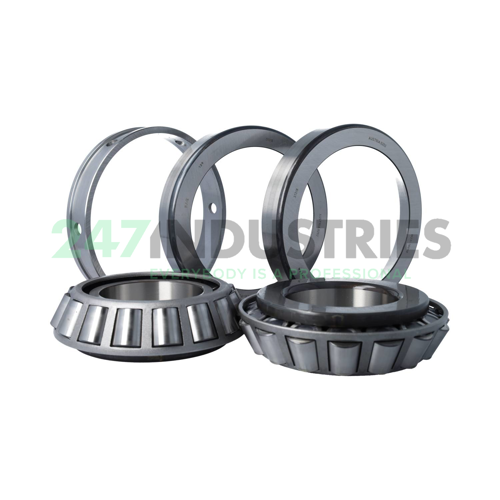

1. DF Two Tapered Roller Bearings Matched In An X Arrangement,With An Intermediate Ring Between The Outer Rings
2. A120-160 Axial Clearance In µm

Technical details

1. Availability 4 pcs on Mon 29 Dec
2. Brand FAG
3. Item number 31318-DF-A120-160 FAG
4. Also known as 0852026224081
   31318-XL-DF-A120-160

5. EAN 4064327188168
6. Category Tapered Roller Bearing Single Row (paired metric)

Weight and Dimensions

1. Weight (kg) 11.5

Product Properties

1. Tapered Roller Pair Internal Play 120-160µm

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 650000
2. Limiting speed (n G) 3700
3. Thermal speed rating (n ϑr) 2550
