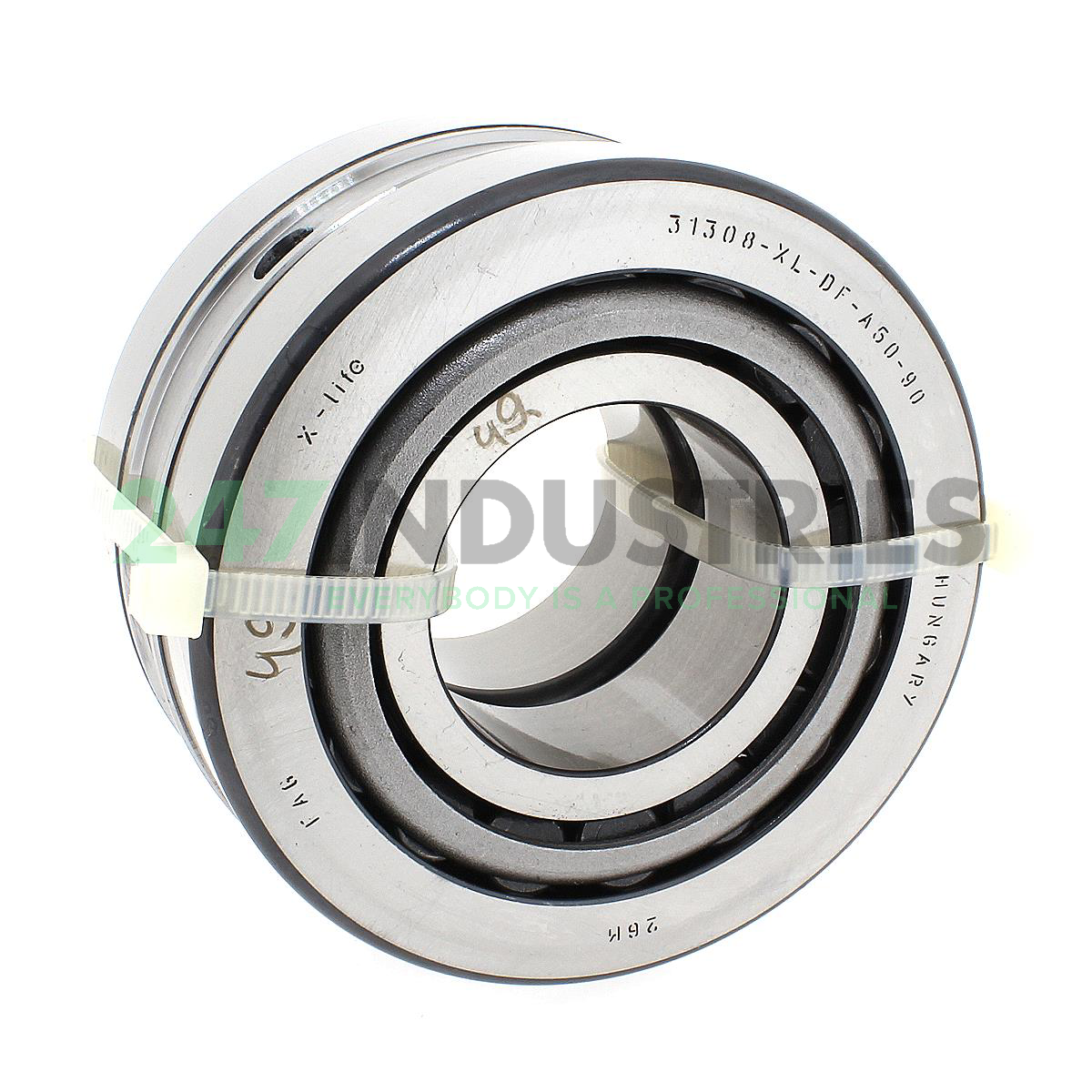

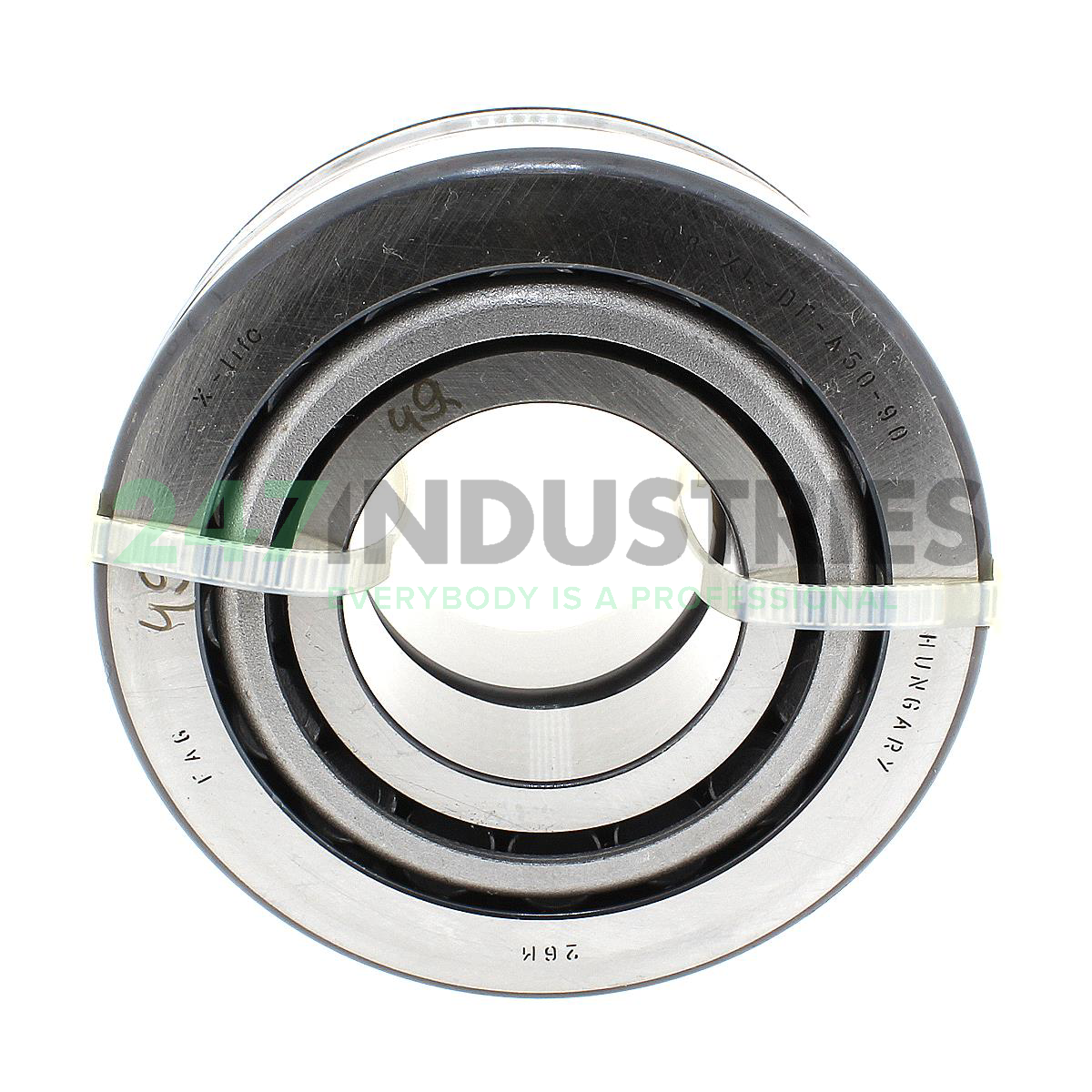

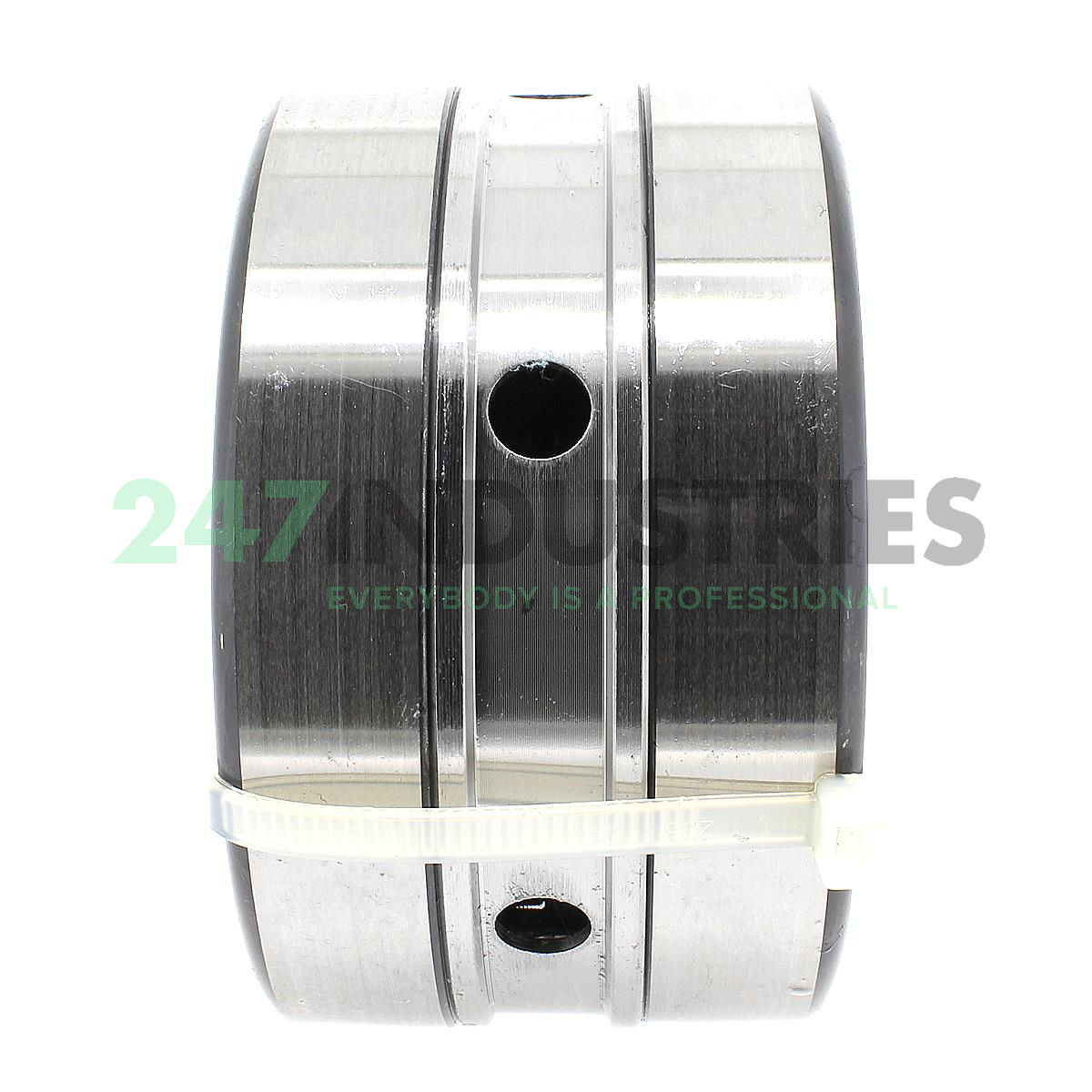

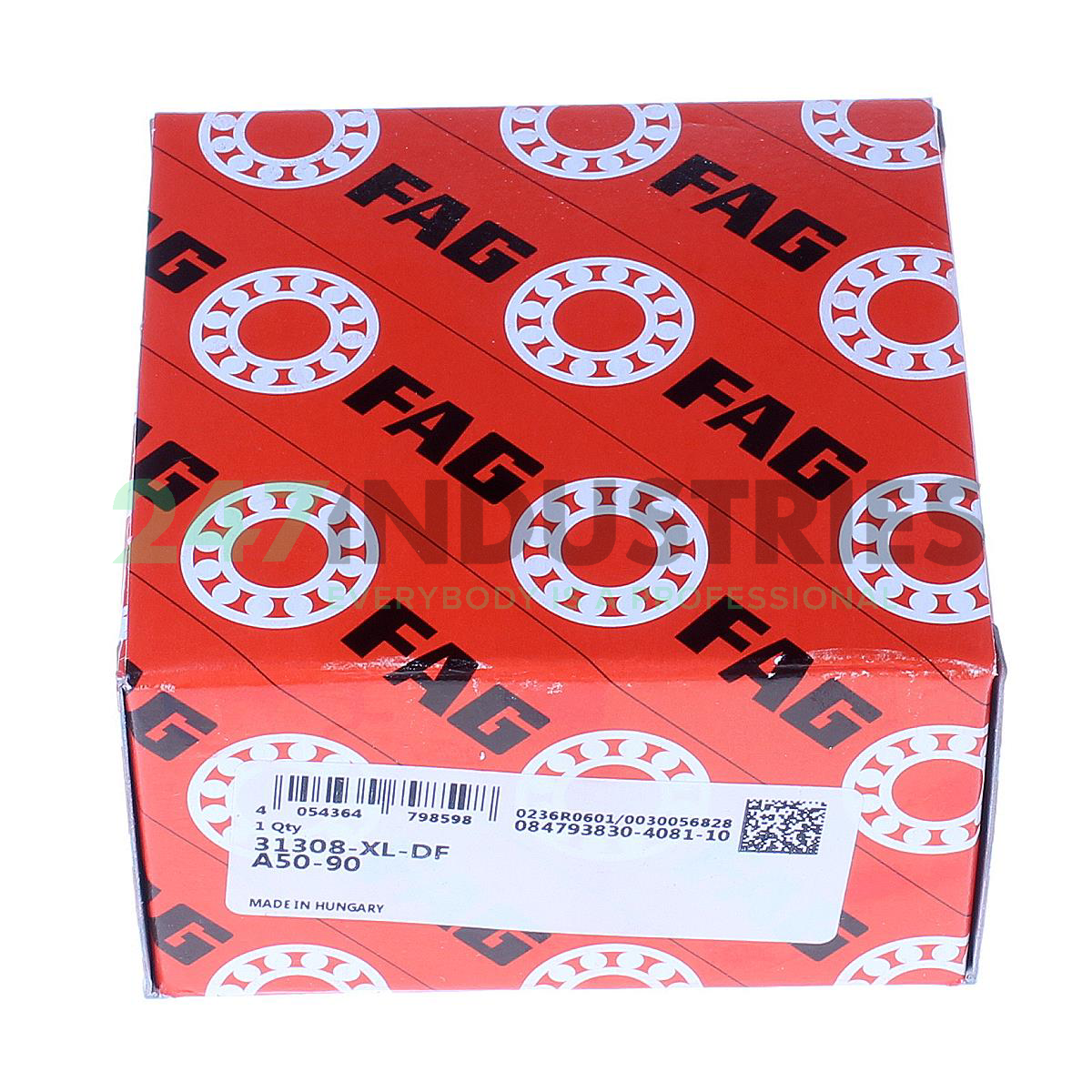

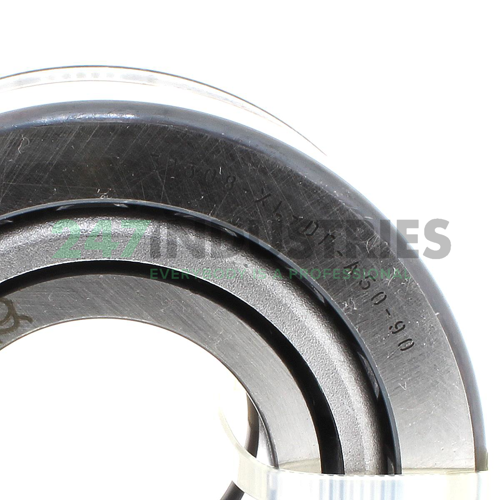

31308-XL-DF-A50-90 FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 50,5
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.9882
7. Inner ring total width (2B) mm 46
8. Outer ring total width (2T) mm 50,5

Suffix description

1. XL X-Life
2. DF Two Tapered Roller Bearings Matched In An X Arrangement,With An Intermediate Ring Between The Outer Rings
3. A50-90 Axial Clearance In µm

Technical details

1. Availability 6 pcs
2. Brand FAG
3. Item number 31308-XL-DF-A50-90 FAG
4. Also known as 0847938304081
   31308-DF-A50-90

5. EAN 4054364798598
6. Category Tapered Roller Bearing Single Row (paired metric)

Weight and Dimensions

1. Weight (kg) 1.52

Product Properties

1. Tapered Roller Pair Internal Play 50-90µm

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 165000
2. Radial Dynamic Load Rating Cr (N) 153000
3. Basic static load rating, radial (C 0r) "165000.0000"
4. Limiting speed (n G) 8700
5. Thermal speed rating (n ϑr) 5100
6. ECLASS number 23-05-09-10
7. ECLASS2 number 23-05-09-10
8. Medias description Tapered roller bearing set 313..-XL-DF, X-arrangement
