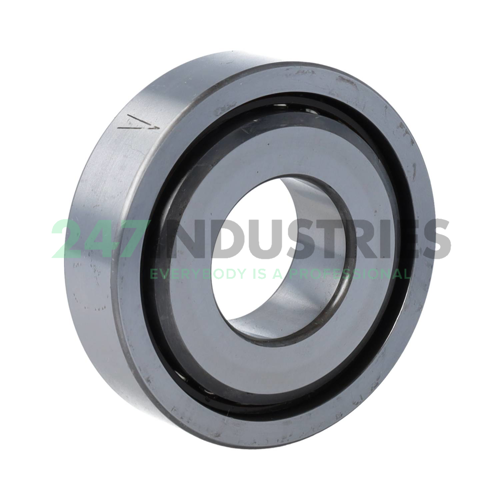

30TAC72BSUC10PN7B NSK

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 19
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.748

Suffix description

1. B High Capacity & Higher Speed (Replaces “A” Type)
2. SU Single Universal
3. C10 Standard Preload
4. PN7B Bore And O.D. Tolerance Is Tighter; Used With SU Combination

Technical details

1. Availability 2 pcs
2. Brand NSK
3. Item number 30TAC72BSUC10PN7B NSK
4. EAN 00029176413025
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.42

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 60 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
