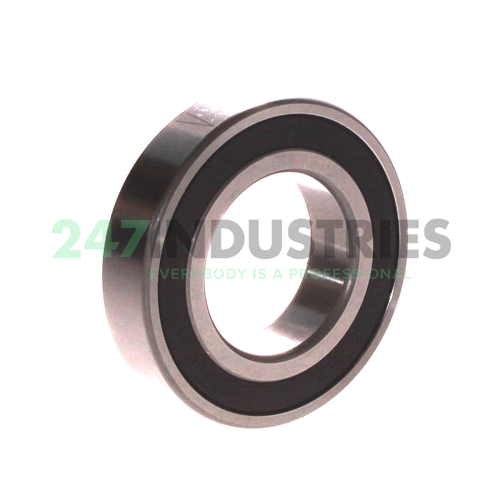

30BER10STV1VSULP3 NSK

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 55
3. Width (B) MM 13
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.1654
6. Width (B) Inch 0.5118

Suffix description

1. S All Steel Bearing (SUJ2)
2. T Machined Laminated Phenolic Cage (Single Row Radial or A. C. Bearings)
3. V1V Non-Contact Rubber Seals
4. SUL Single Bearing, Universally Ground, Light Preload
5. P3 Dimensional Accuracy P4, Running Accuracy P2

Technical details

1. Availability 26 pcs
2. Brand NSK
3. Item number 30BER10STV1VSULP3 NSK
4. EAN 00192661042236
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.124

Product Properties

1. Seal 2RU - Two Seals / Non Contact Type
2. Cage Type TB - Hard Fiber Cage
3. Precision Dim. Acc. P4, Run. Acc. P2
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
