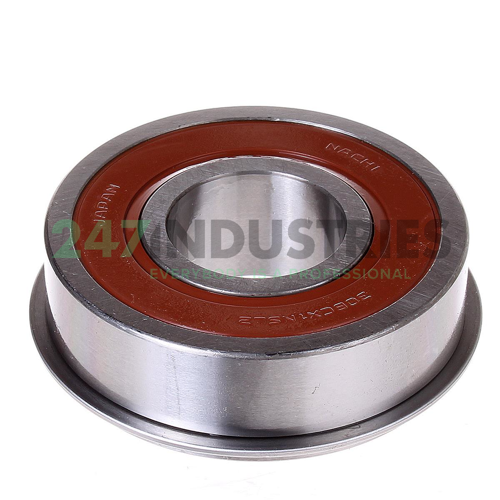

30BCX1-2NSL2NR Nachi

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 33
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.2992

Suffix description

1. 2NSL Contact Seals At Each Side Of The Bearing
2. 2NR Two Locking Groove In Outer Ring

Technical details

1. Availability 0 pcs
2. Brand Nachi
3. Item number 30BCX1-2NSL2NR Nachi
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.4

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification 2R - 2 Snap Rings in O.D.
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
