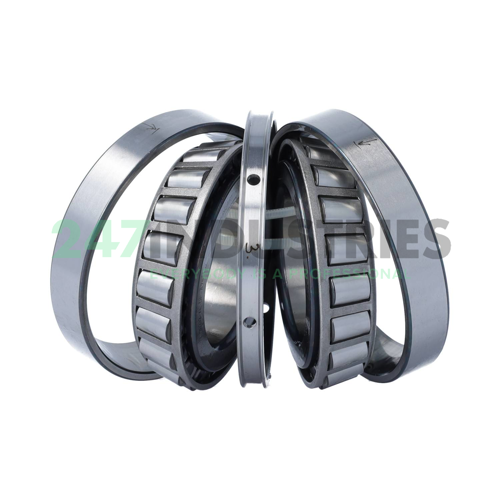

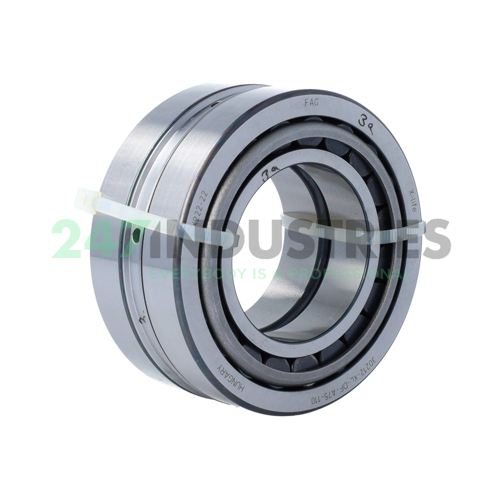

30212-XL-DF-A75-110 FAG

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 110
3. Width (B) MM 47,5
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 4.3307
6. Width (B) Inch 1.8701
7. Inner ring total width (2B) mm 44
8. Outer ring total width (2T) mm 47,5

Suffix description

1. XL X-Life
2. DF Two Tapered Roller Bearings Matched In An X Arrangement,With An Intermediate Ring Between The Outer Rings
3. A75-110 Axial Clearance In µm

Technical details

1. Availability 6 pcs
2. Brand FAG
3. Item number 30212-XL-DF-A75-110 FAG
4. Also known as 0862666164081
   30212-DF-A75-110

5. EAN 4054369326697
6. Category Tapered Roller Bearing Single Row (paired metric)

Weight and Dimensions

1. Weight (kg) 1.97

Product Properties

1. Tapered Roller Pair Internal Play 75-110µm

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 246000
2. Radial Dynamic Load Rating Cr (N) 210000
3. Basic static load rating, radial (C 0r) "246000.0000"
4. Limiting speed (n G) 7500
5. Thermal speed rating (n ϑr) 4250
6. ECLASS number 23-05-09-10
7. ECLASS2 number 23-05-09-10
8. Medias description Tapered roller bearing set 302..-XL-DF, X-arrangement
