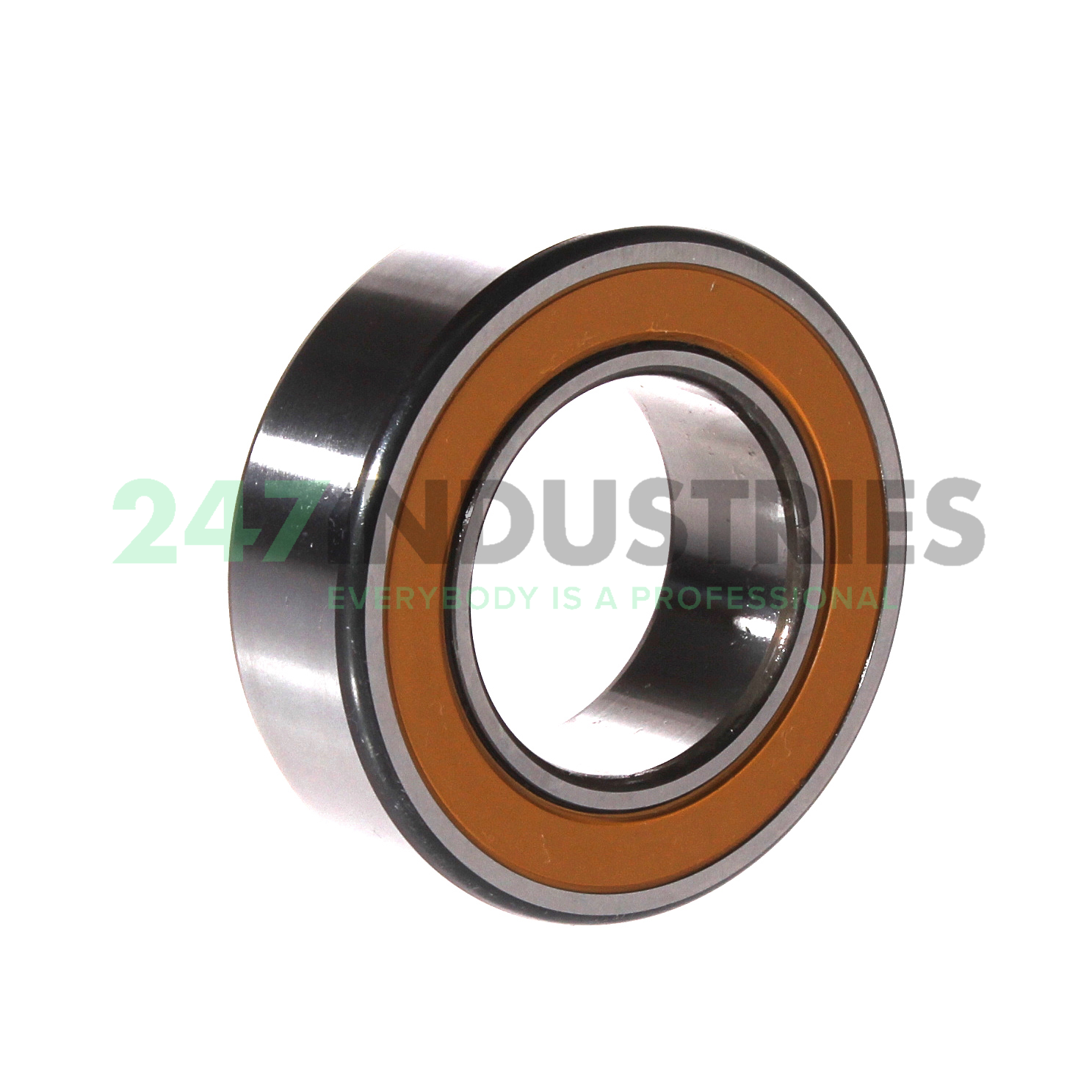

3007-2Z INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 62
3. Width (B) MM 20
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. 2Z Gap Seals At Both Sides Of The Bearing

Technical details

1. Availability 9 pcs
2. Brand INA
3. Item number 3007-2Z INA
4. Also known as 0008752100000

5. EAN 4012802027488
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.2

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 19100
2. Radial Dynamic Load Rating Cr (N) 24000
3. Limiting speed (n G) 8800
4. Reference speed (n ϑr) 8800
5. ECLASS number 23-05-08-03
6. ECLASS2 number 23-05-08-03
7. Medias description Angular contact ball bearings 30..-B-2RZ, Double row design, non-contact radial seals on both sides, contact angle a = 25°
