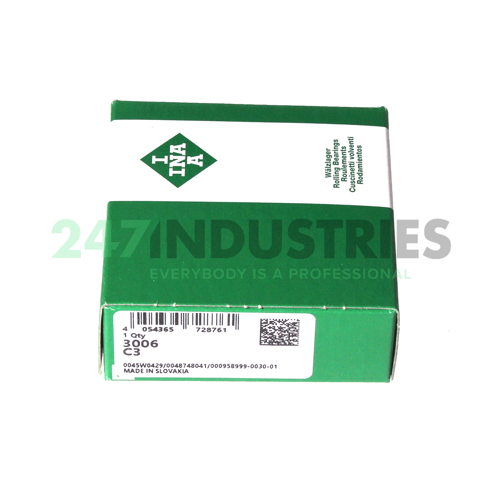

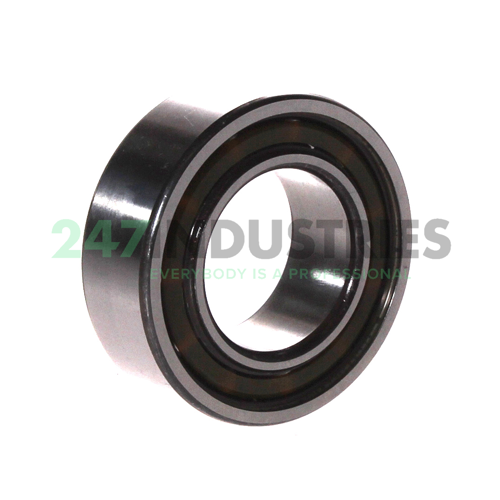

3006-C3 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 55
3. Width (B) MM 19
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.1654
6. Width (B) Inch 0.748
7. Width (b) mm 19

Suffix description

1. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number 3006-C3 INA
4. Also known as 0009589990030

5. EAN 4054365728761
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.16

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15400
2. Radial Dynamic Load Rating Cr (N) 19900
3. Limiting speed (n G) 13500
4. Reference speed (n ϑr) 10100
5. ECLASS number 23-05-08-03
6. ECLASS2 number 23-05-08-03
7. Medias description Angular contact ball bearings 30..-B, double row, contact angle a = 25°
