3003 INA

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 35
3. Width (B) MM 14
4. Width (b) mm 14

Technical details

1. Availability 1 pc
2. Brand INA
3. Item number 3003 INA
4. Also known as 0008041000000

5. EAN 4054364114176

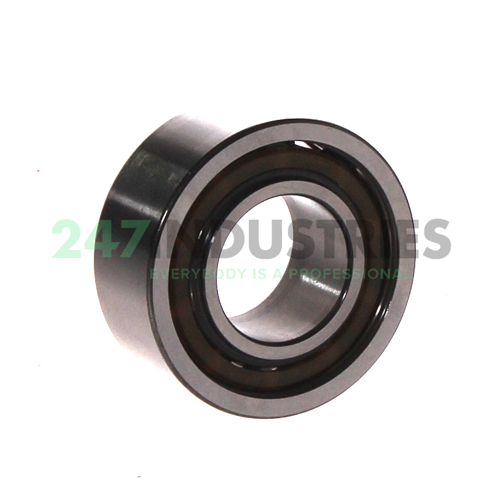

6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.042

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 6100
2. Limiting speed (n G) 22500
3. Reference speed (n ϑr) 15300
