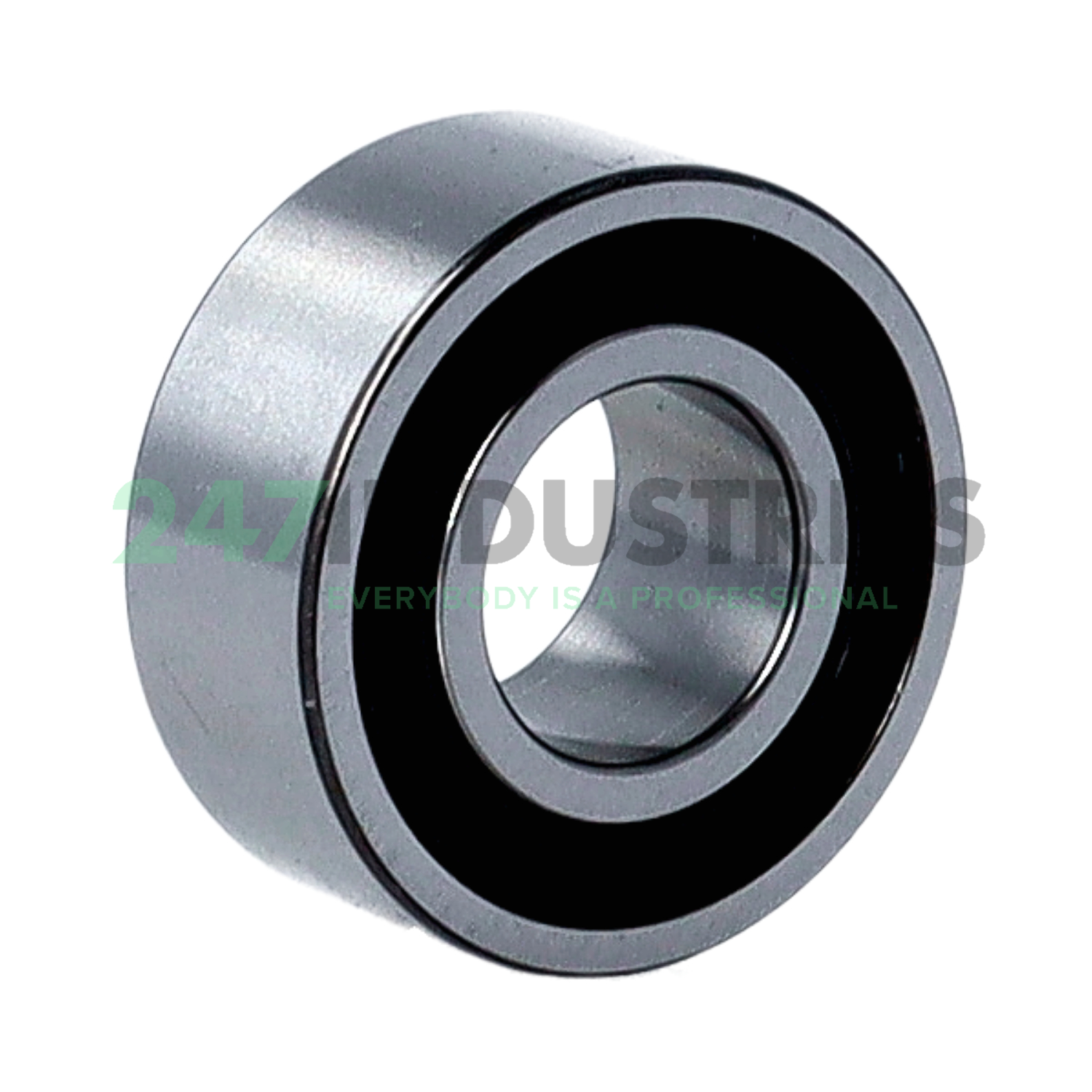

3002-2RS INA

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 32
3. Width (B) MM 13
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.5118
7. Width (b) mm 13

Suffix description

1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting

Technical details

1. Availability 30 pcs on Wed 14 Jan
2. Brand INA
3. Item number 3002-2RS INA
4. Also known as 0008710100000

5. EAN 4012802027402
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.036

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 5400
2. Radial Dynamic Load Rating Cr (N) 8500
3. Limiting speed (n G) 12900
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Angular contact ball bearings 30..-B-2RS, Double row design, lip seals on both sides, contact angle a = 25°

Downloads and links

1. Link to manufacturer Link to manufacturer
