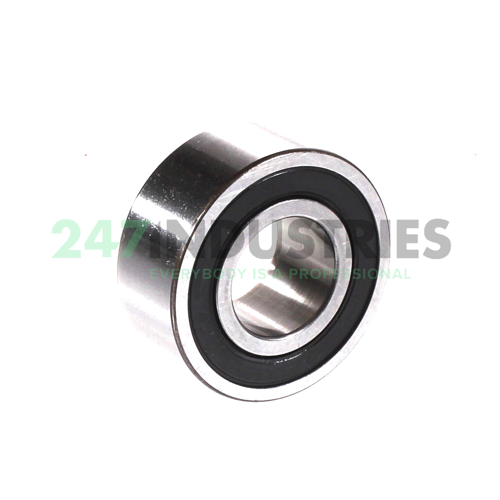

3002-2RS-C3 INA

All dimensions

1. Inner (d) MM 15,00
2. Outer (D) MM 32,00
3. Width (B) MM 13,00
4. Width (b) mm 13,00

Suffix description

1. 2RS Lip Seal At Both Sides Of The Bearing, Axial Fitting
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 17 pcs
2. Brand INA
3. Item number 3002-2RS-C3 INA
4. Also known as 0008710100030

5. EAN 4047643186049
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.036

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 5400
2. Radial Dynamic Load Rating Cr (N) 8500
3. Basic static load rating, radial (C 0r) "5400.0000"
4. Limiting speed (n G) "12900.0000"
5. ECLASS number 23-05-08-03
6. ECLASS2 number 23-05-08-03
7. Medias description Angular contact ball bearings 30..-B-2RS, Double row design, lip seals on both sides, contact angle a = 25°
