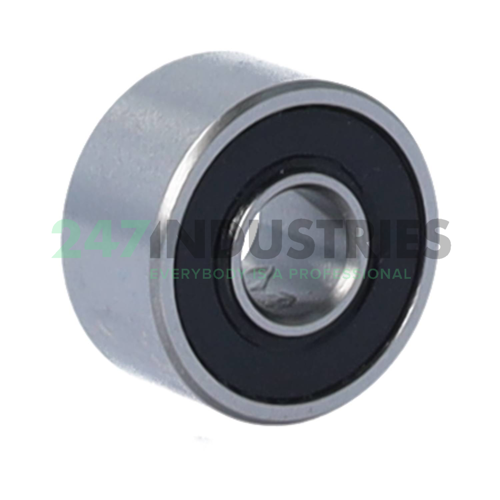

30/7-2RSR-HLC INA

All dimensions

1. Inner (d) MM 7
2. Outer (D) MM 19
3. Width (B) MM 10
4. Inner (d) Inch 0.2756
5. Outer (D) Inch 0.748
6. Width (B) Inch 0.3937
7. Width (b) mm 10

Suffix description

1. 2RSR Rubber Seals At Each Side Of The Bearing
2. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

1. Availability 138 pcs
2. Brand INA
3. Item number 30/7-2RSR-HLC INA
4. Also known as 0004299880000

5. EAN 4012802027358
6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.009

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 1690
2. Radial Dynamic Load Rating Cr (N) 3650
3. Limiting speed (n G) 25500
4. ECLASS number 23-05-08-03
5. ECLASS2 number 23-05-08-03
6. Medias description Angular contact ball bearings 30..-B-2RSR, double row, lip seals on both sides, contact angle a = 25°
